450mm Infrared Bridge Cutting Machine Marble Granite Bridge Cutting Machine, Stone Cutting Machine
| US$25,000.00-27,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HLSQ-450
Usage
Ceramics, Granite, Marble
Application
Art & Craft, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
Siemens PLC
Certification
ISO, CE
Color
Red and Ivory
Head Rotate 4 Positions
0/90/180/270degree
Head Tilting Position
45 Degree
Table Rotate
0-360 Degree
Table Tilt
0-85 Degree
Guide Rail
Linear Guide
Gearing
Rack Gear
Touch Screen
Siemens
PLC
Siemens
Electrial Parts
Siemens and Schneider
Guide
Hiwin Linear Guide
Structure
Intergrated Machine
Operation Type
Automatic
Lanaguage
Multi-Languages
Cutting
Vertical and Horizontal Cuttings
Transport Package
Plastic Packing
Specification
Working Area: 3300*2000mm
Trademark
Hualong
Origin
Putian, Fujian, China
HS Code
84641010
Production Capacity
50 Pieces/Month
Product Description

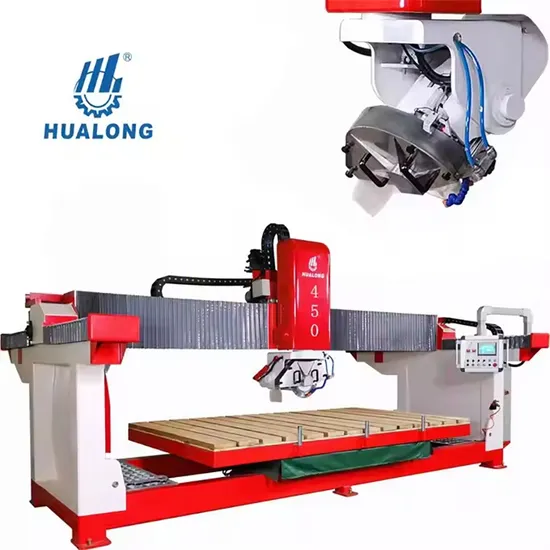

HLSQ-450 is a SIEMENS PLC Controlled bridge saw with interpolated axes, rotating head and work bench, specially engineered to cut and process of marble, granite, or other natural and engineered stones.-- 0° to 45°head tilting, 0°to 270°head rotation.
-- 0° to 85° table tilting, 0°to 360°table rotation.
-- Linear guideway in "X, Y, Z" axis to guarantee accuracy and speed.
-- Electric and electronic components in international standards to be easily sourced.
-- Full machine be loaded in 20 GP container. Easy to load, transport and install thanks to its monobloc structural frame.
-- SIEMENS PLC control system in 4 Languages for automatic cutting and easy operation.
-- Spindle motor variable speed by means of inverter (Optional).
Other details of machine:
Main Parts of Machine:
The finish our machine can do:
