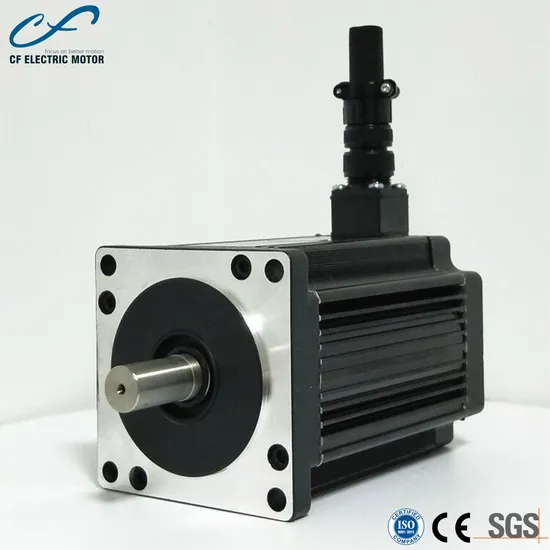

NEMA42 Series High Precision 3 Phase F110byg350 Step/Stepping/Stepper Motor

Product Description

HYBRID STEPPING MOTOR 42HT SERIES
Nema42 Stepper Motor General Specifications:
Step Angle----------------------------------------------------------------------------------------------------------------------------------------------- 1.2°(full step)
Step Angle Accuracy---------------------------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy---------------------------------------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy---------------------------------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise-----------------------------------------------------------------------------------------------------90ºC Max(rated current, 2 phases on)
Ambient Temperature Range----------------------------------------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance---------------------------------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength----------------------------------------------------------------------------------------------------------------- 750VAC 50Hz 1mA 1 Minute
Insulation Class--------------------------------------------------------------------------------------------------------------------------------------- F Class(155ºC)
Stepper Motor Electrical Specifications:
Wiring Diagram: Pull-out Torque-pulse curve:
Stepper Motor Data drawing for 3-phase Nema42, 110mm series:
Dimensions(mm):
Shaft:
Round Shaft Key Shaft
Two kinds of Motor Ends for choosing:
Aviation Scoket at the Motor End Aviation Socket at the Back Cover End
Packing: Hard cardboard or wooden box with foam inside for Nema42 and Nema52 series stepper motor which can protect motors completely.
Shipping: 1. Various kinds of shipping method for choosing according to order quantity and customer's destination.
BY EXPRESS BY VESSEL BY RAILWAY BY AIR
2. Normally the delivery time is approx15 days according to customer's choice or ship by the best way to the destination.
Delivery: 1.With over 17 years of manufacturing experience, any type of customizing is available. 2.With perfect service system, we can provide you with first class pre and after sale service. 3.We have enough storage of each type of products, with first class packaging and shipping, make sure the accurate delivery. 4.Professional sales consultants give you all answers about our proucts.
Certificate:
FAQ:
Question1: What is your service time:
Answer: 24 hours online service. Email will be replied within 12 hours.
Question2: What about your products' warranty?
Answer: 1 year. For sea orders, the warranty is 15 months.
Question3: Do you have any certificate?
Answer: Yes we have. Our factory passed ISO9001 and SGS verified. All motors have been approved by CE.
Question4: Do you offer ODM and OEM Service?
Answer: Yes. ODM products according to customized design and specification as well as OEM products.
Question5: What is the delivery time?
Answer: For samples, 10-30 days according to the differnet produced difficulty. For bulk, normally 20-30 days. For customized order, the delivery can be negotiated.
