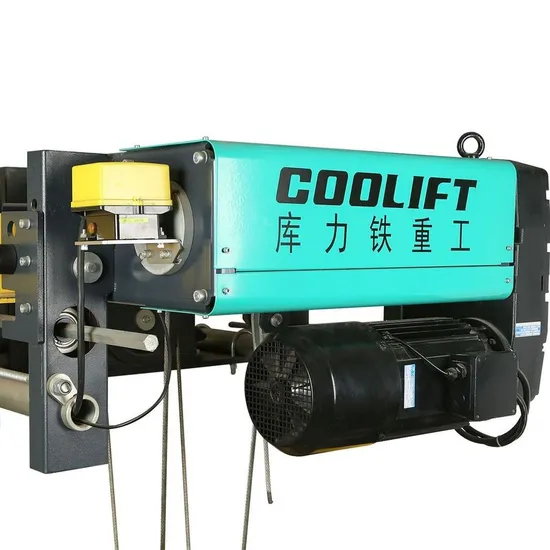

Cwhs-10t-H6m 0.8/5.0 M/Min 740kg Steel Wire Rope Electric Hoist

Product Description

Product Description
Single Girder Hoist
The single girder hoist is a compact and cost-effective lifting device. It consists of a horizontal main beam and end beams at both ends, which are equipped with wheels and can move on overhead tracks to enable the crane to traverse the work area. The main beam is connected to the end beams by beam and end connectors to form a rigid structure. The main components include the hoisting unit, bridge drive system, end beams, and control panel. The hoisting unit is responsible for lifting and lowering the load and usually includes an electric motor, gearbox, drum, and wire rope.
Single girder hoists are characterized by their simple design, lightweight, and flexible operation. They are suitable for operations with a lifting weight of up to 20 tons, with a span usually between 10 and 30 meters, a limited lifting height, and a light weight due to the single beam design, which is easy to install. Single girder hoists also have adjustable lifting speeds and controls to adapt to different load requirements and can be precisely raised and lowered by buttons or radio remote control. In addition, they also have a horizontally moving bridge drive system that provides different movement speeds to meet application requirements.
Single girder hoists are widely used in various industrial fields, such as workshops, warehouses, workstations,s and other places in machinery, manufacturing, metallurgy, petrochemical, ports, railways, aviation, electricity, food, papermaking, construction, electronic,s and other industries.
We offer three configurations for you to choose from
High-level Configuration:
Lifting motor from Germany with the brand ABM, the electrical element and frequency converter from Schnei-der, and running motor from Germany with the brand Nord.
Standard Configuration:
Lifting motor from Germany with the brand ABM, electrical element from Schnei-der frequency converter from China, and running motor from China.
Basic Configuration:
Lifting motor from China(except DOUBLE GIRDER TYPE models which lift weight above 10t, using German ABM lifting motor), electrical element and frequency converter from China, and running motor from China.
Product Parameters

SINGLE GIRDER HOIST SPECIFICATION
Product Name	Single Girder Electric Wire Rope Hoist
Keywords	Electric Hoist
Configuration	Basic Configuration
	10t 6m
Lifting Speed	0.8-5.0 m/min
Lifting Power	1.5/9.5 KW
Traveling Speed	5-20 m/min
Traveling Power	0.95 KW
FEM/ISO	2m/M5
Gross Weight	740kg
Power Source	Electric
Quality Control	100% Inspection
MOQ	Low MOQ
Sample	Accept
OEM & ODM Custom	Accept
*The above data is for reference only.

Detailed Photos
ECONOMICAL AND EFFICIENT
Single Girder Hoist has a simple structure and relatively low manufacturing cost. It can provide efficient lifting solutions within a limited budget.
CONVENIENT INSTALLATION
Due to the lightweight and compact structure of the single girder hoist, the installation process is simpler and faster, reducing installation time and cost, and improving production efficiency.
LOW MAINTENANCE COST
Due to the simple design, the maintenance and upkeep of the single girder hoist are relatively simple, reducing maintenance costs and downtime, and ensuring the long-term stable operation of the equipment.
HIGH SAFETY
Single girder hoist is equipped with a variety of safety devices, such as limit switches, overload protectors, etc., to ensure safety during operation and reduce the risk of work accidents.
STRONG ADAPTABILITY
Single girder hoist is suitable for a variety of working environments, whether it is indoor precision operation or outdoor heavy load handling, it can provide stable performance.

FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer. We have our R&D team, factory, and marketing department.
Q2: How do you ensure product quality?
A2: All our processes strictly comply with ISO-9001 procedures, including material traceability, ISO WPQR and welder certificates, measurement equipment calibration, welding non-destructive testing, and comprehensive assembly and load testing before delivery.
Q3: How can I pay?
A3: We accept T/T bank transfers, letters of credit, and Paypal.
Q4: How can I assemble the crane in my factory?
A4: We recommend that you recruit a local crane service team to install the crane base according to our installation guide and user manual. If not, we can send engineers to your factory to guide you to installation, but it will cost extra, and the transportation, accommodation, and translation costs will also be borne by you.
Q5: Do you accept OEM business?
A5: Of course, we do many OEM productions for some famous crane brands and customers all over the world.
Q6: How about the delivery time?
A6: The estimated delivery time for different capacity cranes and components is different, generally speaking, it is about 4 weeks to 8 weeks.
