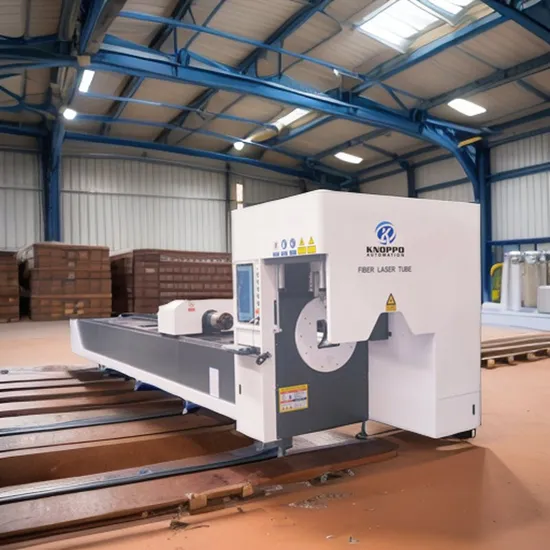

5-Axis CNC Steel Pipe Profile Fiber Laser Cutting Machine

Product Description

Introducing the KNOPPO Fiber Laser Tube Cutting Machine, where precision meets reliability! Experience unparalleled performance with our cutting-edge technology, designed to redefine efficiency with every use. And for your peace of mind, enjoy an extensive 3-Year Warranty, ensuring our commitment to quality and excellence. Choose KNOPPO for a seamless cutting experience that stands the test of time.
Product Description
Our Professional Laser Tube Cutting Machine is engineered for unparalleled precision and versatility, crafted to cater to an array of profiles including round pipes, square tubes, rectangular tubes, tubular elements, and robust H beam profiles. The Tube Laser Cutting Machine comes in multiple models, offering the capability to slice through tubes ranging from 10-500 mm in diameter with impressive lengths of up to 6 or 12 meters. Experience the seamless integration of automated feeding functions for both tubes and pipes, optimizing efficiency and productivity.
APPLICATION Capitalizing on the remarkable advantages of fiber laser technology, our tube laser cutting machine is increasingly becoming a staple in tube processing industries worldwide.
Boasting high beam quality, exceptional brightness, superior conversion rates, maintenance-free operation, and a compact design, it ensures stable and reliable performance at a low operational cost. Air-assisted cutting sets the pinnacle of laser cutting technology, exceptionally suited for stainless steel, carbon steel, alloy, brass, copper, titanium, and other metal materials. It is perfect for precision cutting and is extensively utilized across industries such as metal products, bicycles, metal furniture, fitness and sports equipment, farm machinery, and display shelving. Additionally, it supports critical applications in the fire control sector.

Product Parameters

Model		KT6
Laser Power		1000W/1500W/2000W/3000W/4000W/6000W/8000W / 12KW
Tube Cutting Length		6m / 12m
Tube Cutting Diameter		Round Tube: φ50-φ500mm Square Tube :50-350mm U-Steel 5#-40# I-Beam 10#-40# Angle Iron 250*250mm
Machine overall dimensions		8550*2300*2000mm
Machine weight		6000kg
Max. linkage speed		140m/min
Max. acceleration		1G
Positioning accuracy		0.03mm
Repositioning accuracy		0.02mm
Option		Semi-automatic loading / Full-automatic loading system

Detailed Photos
Premium Laser Heads from Switzerland Raytools or Germany Precitec
Renowned Swiss Brand, Top-tier Quality: Raytools stands as the global leader, celebrated worldwide for its excellence. Experience superior performance with our built-in double water-cooling structures. These ensure a stable temperature for collimating and focusing components, effectively preventing lens overheating, prolonging the lifespan of lenses, and meticulously protecting key components with the protective lens.
MAX Laser Source
As the largest laser source manufacturer in China, MAX provides exceptional quality and long-lasting performance, capable of cutting carbon steel, stainless steel, and aluminum effortlessly. Ideal for 24/7 continuous operation.
Robust Welding Machine Body
Engineered with high compressive strength and hardness, our machine offers remarkable shock absorption and wear resistance. Its low thermal sensitivity and bed gap sensitivity preserve machine accuracy over time, preventing deformation throughout its life cycle.
Japan YASKAWA Servo Motor
1. Incorporating Japan's Yaskawa servo motor with a closed-loop control method ensures precise positioning and dynamic response at optimal acceleration, resulting in smooth, reliable, and maintenance-free automatic positioning.
2. Features high-power motor drive for X, Y, Z axes, delivering acceleration up to 1.5G.
FSCUT5000 Control System
Achieve real-time compensation for pipe center deviations, minimizing pipe clamping needs and enhancing efficiency. Experience higher perforation precision and accurate cutting.
Built on a real-time bus system with integrated control, it accelerates pipe corner cutting, ensures stable corner following, and guarantees reliable cutting quality.
Supports bracket follow-up function to ensure superior quality in complete pipe processing and cutting.
Enables feeding cutting of hollow chuck, significantly reducing the overall length of the machine while ensuring high automation.
Facilitates pulling cutting with three chucks, ensuring precision for long parts and achieving zero tailing cutting.
In terms of servo control, expect superior running speed and accuracy due to a dual closed-loop algorithm for speed and position. Features alarm support for board contact and edge detection, with automatic inspection.
Automatic Rotary and Chuck
Our automatic electric chuck offers claw DC motor drive with sensitive, adjustable, and stable clamping motor current. Experience a wider clamping range and greater force, with fast, non-destructive pipe clamping, automatic centering, and enhanced stability. Smaller chuck size reduces rotation inertia, boosting dynamic performance. Self-centering electric chuck with gear transmission ensures higher efficiency, extended working life, and superior reliability.
Fully Automated Loading System
The system automatically detects and clamps the next tube in standby. Once processing of the previous tube concludes, it promptly loads the next, achieving truly uninterrupted processing.
Sample
Certifications
Our 5-Axis CNC Steel Pipe Profile Fiber Laser Cutting Machine proudly holds CE certifications. This attests that all electrical schematics and the superior quality of our machines are meticulously crafted to meet the rigorous European standards, ensuring unparalleled performance and safety.
After Sales Service
* Enjoy a comprehensive 3-year guarantee on the entire machine with lifetime maintenance offered free of charge, ensuring peace of mind and expert care for your investment.
*Benefit from complimentary training at our factory, designed to ensure you become adept at operating the machine with confidence and proficiency.

* Access our dedicated 24-hour online support via Whatsapp, Skype, Email, or phone, providing you with instant assistance and solutions at your fingertips.

*Our highly skilled engineers are ready to provide overseas training and after-sale services, bringing expert knowledge and support directly to your location.

* Receive a user-friendly English manual and operation video CD, crafted to guide you effortlessly through every step of using your new machine.
