SAE100 R1at Steel Wire Braided Flexible Pressure Rubber Hydraulic Hose

SAE100 R1at Steel Wire Braided Flexible Pressure Rubber Hydraulic Hose

US$2.00 500 Meters (MOQ)

Basic Info.

Model NO.
KL-HPRH-100R1at
Color
Black
Use
High Pressure Hydraulic Hose
Size
1/4-10inch
Length
1-100m
Standards
GB / DIN / SAE
Transport Package
in Plastic Film or Carton or as You Request
Specification
SGS, CE
Trademark
KangLong
Origin
Hebei China
HS Code
391739000
Production Capacity
10000meters Per Week

Product Description

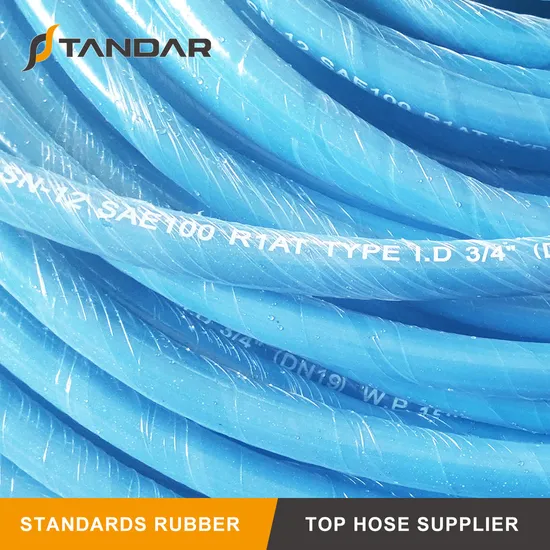

SAE 100 R1at Steel Wire Braided Hydraulic Rubber Hose
Product details:

Product: braided hose
Model Number:SAE 100R1AT
Inner tube:oil resistant synthetic rubber
Inner Dia.:3/16"-4" for braided hydraulic hose
Reinforcement:one high tensile copper-coated steel wire
Cover:heat,heavy-weather ,fatigue resistant speical synthetic rubber
Impulse:the frequency of braided hydraulic hose above 200,000times
Working temperature:-40°c-+100°C or -70°C-+160°C
Keywords: SAE 100 R1AT steel wire braided hydraulic rubber hose ; SAE 100R1AT hydraulic hose ; Braided rubber hose ; rubber hydraulic hose
SAER100R1AT steel wire braided hydraulic rubber hose tecnical parameter:

SAE 100R1 AT /DIN EN 853 1SN

Hose I.D
Wire OD
Hose OD
Working Pressure
Burst Pressure
Minimum Bend Radius
Weight
Length

inch
mm
mm
mm
MPa
psi
MPa
psi
mm
kg/m
metres

3/16
4.8
9.5
11.8
25.0
3630
100
14280
90
0.19
100

1/4
6.4
11.1
13.4
22.5
3270
90
12840
100
0.21
100

5/16
7.9
12.7
15.0
21.5
3120
85
12280
115
0.24
100

3/8
9.5
15.1
17.4
18.0
2615
72
10280
130
0.33
100

1/2
12.7
18.3
20.6
16.0
2320
64
9180
180
0.41
50/100

5/8
15.9
21.4
23.7
13.0
1890
52
7420
200
0.45
50/100

3/4
19.0
25.4
27.7
10.5
1530
42
6000
240
0.58
50/100

1
25.4
33.3
35.6
8.8
1280
35
5020
300
0.88
50/100

1-1/4
31.8
40.5
43.5
6.3
920
25
3600
420
1.23
20 to 40

1-1/2
38.1
46.8
50.6
5.0
730
20
2860
500
1.51
20 to 40

2
50.8
60.2
64.0
4.0
580
16
2280
630
1.97
20 to40
