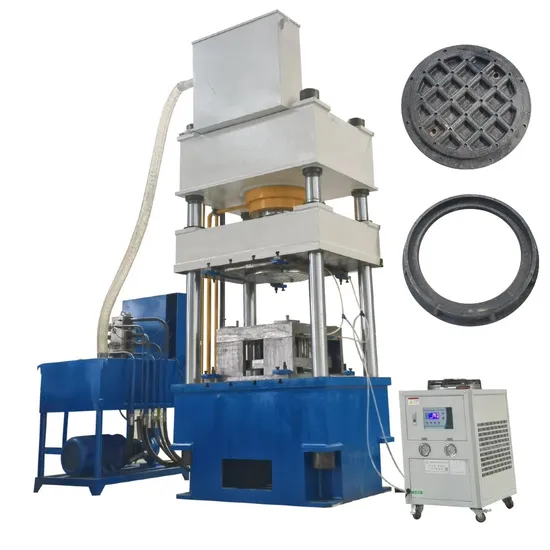

Tabletop Four Column Type Deep Draw Hydraulic Press Machine

Product Description

Product Description1. It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting.
2. Hydraulic press machine mainly applies to the fields of plastic bricks, machine tool, engineering machinery, bearings, washing machine, automobile parts, motor components and powder metallurgy.
3. Hydraulic press machine is suitable for the molding of plastic products, such as DMC and BMC.
4. The machine is highly automatic, especially suitable for mass production of parts. And it can be used as assembly line with several such equipment.SpecificationAdvantage
1. The hydraulic control system adopts integrated cartridge valve system and reliability, long life.2. The hydraulic impact is small, reducing the connection between the pipe and the leak point.3. Independent electrical control system, reliable, intuitive, easy to maintain.4. Centralized control design, two operation modes.5. Setup can be easily implemented.6. Work pressure, according to the technical requirements within the scope of adjustment.

Model	100t-A	100t-B	200t-A	200t-B	315t-A	315t-B	315t-C
Nominal Force(KN)	1000	1000	2000	2000	3150	3150	3150
Ejector Force(KN)	250	250	350	350	630	630	630
Slide Stroke(mm)	600	600	600	600	600	600	800
Ejection Stroke(mm)	200	200	260	260	260	260	260
Maximum Working Force of Liquid(Mpa)	25	25	25	25	25	25	25
Maximum Opening Height (mm)	1000	1000	1000	1000	1000	1000	1250
Effective Area of Table(mm)	700(L-R)	560(L-R)	800(L-R)	1000(L-R)	800(L-R)	1000(L-R)	1260(L-R)
	620(Front and Rear Edges)	560(Front and Rear Edges)	800(Front and Rear Edges)	1000(Front and Rear Edges)	800(Front and Rear Edges)	1000(Front and Rear Edges)	1200(Front and Rear Edges)
Speed(mm/s)	120(Descent)	120(Descent)	120(Descent)	120(Descent)	120(Descent)	120(Descent)	120(Descent)
	30(Slow Descent)	30(Slow Descent)	25(Slow Descent)	25(Slow Descent)	35(Slow Descent)	35(Slow Descent)	35(Slow Descent)
	75(Ejection)	75(Ejection)	75(Ejection)	75(Ejection)	75(Ejection)	75(Ejection)	75(Ejection)
	100(Return)	100(Return)	90(Return)	90(Return)	100(Return)	100(Return)	100(Return)
Motor Power(kw)	5.5	5.5	7.5	7.5	15	15	15

Model	400t-A	500t-A	500t-B	630t
Nominal Force(KN)	4000	5000	5000	6300
Ejector Force(KN)	800	1000	1000	1000
Slide Stroke(mm)	600	800	800	800
Ejection Stroke(mm)	260	300	300	300
Maximum Working Force of Liquid(Mpa)	25	25	25	25
Maximum Opening Height(mm)	1200	1200	1200	1200
Effective Area of Table(mm)	1200(L-R)	1200(L-R)	1400(L-R)	1600(L-R)
	1200(Front and Rear Edges)	1200(Front and Rear Edges)	1400(Front and Rear Edges)	1600(Front and Rear Edges)
Speed(mm/s)	120(Descent)	120(Descent)	120(Descent)	120(Descent)
	35(Slow Descent)	35(Slow Descent)	35(Slow Descent)	35(Slow Descent)
	75(Ejection)	75(Ejection)	75(Ejection)	75(Ejection)
	100(Return)	100(Return)	100(Return)	100(Return)
Motor Power(kw)	16	19	22	27

Application1. This machine applies to cut edge for plastic or rubber products.
2. It has a wide application in many industries like packing, light industry, hardware electron and so on.
Packaging & Shipping
Packing: The normal package is wooden box. We will use pe film for packing or pack it according to customers special request.Delivery: Delivery within 15 days after receipt of deposit.After Sales ServicePre-sale service:Act as a good adviser and assistant of clients,enable them to get rich and competitive from the returns of their investment.1. Select suitable equipment model.2. Design and manufacture products according to clients' special requirements.3. Train technical personnel for clients.4. Professional suggestion for customer.After-sale service:Provide considerate service to minimize clients worries.1. Provide civil engineering drawings of the equipment.2. Free training(including installation, maintenance) to every customer.3. Install and debug the equipment,ensure the dryer running smoothly.4. Examine the equipment regularly.Company ProfileHenan Kaichuang Machinery Equipment Co., Ltd. is a modern enterprise that integrates design, research and development, production, sales, and export, specializing in the production of clean energy equipment, energy-saving equipment, and waste recycling equipment. All products adopt international quality standards. Our company adheres to the corporate spirit of people-oriented, honest and trustworthy, technological innovation, and pioneering spirit. We always take technology as the driving force and market orientation to make our products first-class. In order to ensure customer satisfaction, our company uses service skills as a carrier to provide customized solutions for customers, continuously optimizing equipment and facilities, and relying on the most professional knowledge and comprehensive technical support, we strive to implement comprehensive quality testing measures in all aspects of production.
