Drainage Pipe DN200-1600mm HDPE Steel Belt Reinforced Spiral Winding Corrugated Pipe Extruder Machine Production Line

Product Description

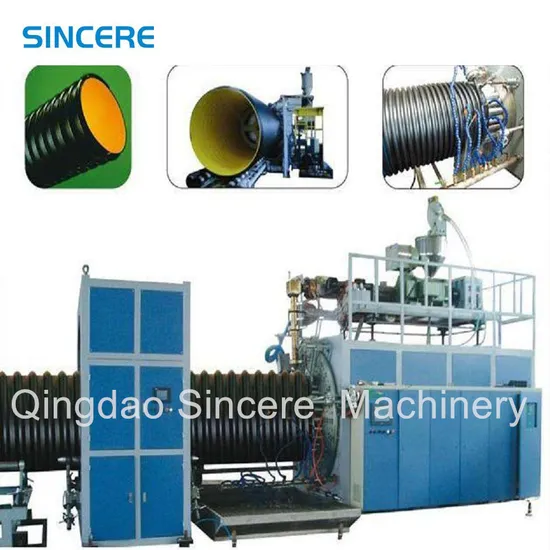

HDPE Plastic Steel Winding Pipe Extrusion Production Machine
We are going to continue to lead the pursuit of excellence created a unique and exquisite HDPE Reducing Tee, Large Diameter PVC Pipe, Tee PVC Pipe, working together to build a new world with the community. We continue to develop new products and improve existing products with ourrigorous scientific style, superb professional technology, and lead the market. We look forward to your inquiry. Our company values the adherence to innovation-driven strategy. As far as the future is concerned, we are prepared to share resources with the world, grow together and create a better future. We will serve the domestic and foreign businessmen with sincere dedication, and let us create bright future together with you!
Product Introduction
The steel belt reinforced polyethylene (PE) spiral corrugated pipe is a new type of bellows with high-density polyethylene as the basic material, the outer layer is spirally wound in the wall layer, and the steel plate is reinforced with hollow ribs. In addition to the corrosion resistance, smooth inner wall and low flow resistance of ordinary plastic pipes, it has a steel ring as a hollow surrounding structure of the reinforcement, so it also has a ring degree of more than 12.5KN/m2 (spiral winding). Hollow wall polyethylene can only reach 8KN/m2 ring steel) and high strength and toughness, light weight (40% lighter than spiral wound hollow wall polyethylene pipe), impact resistance, not easy to break, no leakage, etc. Features, so it is widely used in drainage, sewage, agricultural irrigation, coal mine ventilation, chemical, communications cable sheathing and other fields. Because of its light weight and convenient transportation and installation, it reduces the labor intensity of construction workers and reduces the cost of the project. It is an ideal substitute for concrete pipes and traditional drainage plastic pipes.
Feature of Steel Belt Rinforced PE Spiral Pipe
Outer diameter: Common Diameter 200mm~4000mmMaterial: High quality, virgin or recycled PE100/PE80
The ring stiffness reached SN8 to SN16, 300 mm (12 inch) up to 3200 mm (126 inch)


1. HDPE Large diameter spiral pipe (diameter from 200mm-4000mm) has high ring stiffness and high brunt intensity with "H" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.
2. HDPE large diameter hollow wall winding pipe machine .**The HDPE large diameter hollow wall winding pipe extrusion line is designed with advantaged technology and improved based on long time practice experience. Diameter range can be 200-3000mm. **Our machine is featured with comfortable operation and high performance/price ratio. **Due to our special design, it is very convenient in transportation and installment. **We also developed energy saving method to save energy consumption in large diameter hollow wall winding pipe extrusion. **By adopting two sets of high efficient extruders, the output capacity is big. Our winding pipe extrusion line can make pipe with ring stiffness 4, 8, 12KN/m2. All parts precisely designed and manufactured so the whole extrusion line works stably and reliably. **Special design for easy maintenance. **The HDPE large diameter hollow wall winding pipe extrusion line is mainly used for producing large diameter hollow wall winding pipe.
3.Technical parameters

Model	SMSG-800	SMSG-1200	SMSG-1600	SMSG-2200/2400	SMSG-3000/4000
Extruders	SJ65+SJ55	SJ90+SJ65	SJ100+SJ65	SJ120+SJ90	SJ150+SJ100
Output capacity(kg/h)	250-300	350-400	500-600	750-850	1000-1500
Pipe diameter(mm)	200-800	400-1200	800-1600	1200-2200 800-2400	2000-3000 2000-4000
Production speed(m/h)	2-16	2-12	1-6	0.5-5	0.3-3
Installed power(kw)	180	250	300	400	500

4.Plastic Pipe Production Machine Pictures

HDPE Plastic steel pipe making machine Feeder ,Drying hopper and Extruder High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality extrusion.
(1) Motor brand: Siemens (2) Inverter brand: Delta (3) Contactor brand: Siemens (4) Relay brand: Omron (5) Material of screw and barrel: 38CrMoAlA. (6) Heating method: Ceramic or cast aluminum heating

HDPE Plastic Steel Coiled Pipe Extusion Die headThe mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.


Vacuum calibration water tank and Water cooling tank
It is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed. (1) Vacuum pump power : 4 kw
(2) Water pump power: 2.2 kw*2
(3) Spray cooling: ABS nozzle; Stainless steel pipe
(4) Stainless steel material: 1Cr18NiTi
(5) Diameter of tank : Customized
(6) Length of tank: 6 m

HDPE Plastic Steel Pipe Haul-off machineThe main function of the tractor is to clamp the pipe after cooling and forming, and transport the pipe forward smoothly and evenly by providing a certain traction speed and traction force.

HDPE Plastic Steel pipe cutting machine
The special cutting machine for PVC pipe adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device. (1) Cutting motor power: 1.5 kw
(2) Cutting scope: Customized
(3) Control means: Pneumatic control

HDPE Plstic Steel Pipe Glue welding extruder It has the function of easy operation and maintenance
5.Recommend Spiral Pipe Machine:
HDPE Hollow-wall corrugated plastic pipe manufacturing machinery.
Solid wall spiral winding pipe extrusion line.
6.HDPE spiral winding sewer/plastic steel pipes Application:
- Sewage and drainage pipes
- Storm water drainage pipes
- Rain water sewage plastic pipes
- Cable protection pipes
- Civil construction sewage pipes
-Chemical storage tank
- Liquid storage tank
- Manhole wellboreIt can be used for approximate 50 years and has many advantages such as low cost assembly and easy operation, with standing pressure, corrosion resistant such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe nowadays. It is being widely used as sewage and drainage pipe.
