High End Fpga Xilinx Board Fpga Virtex for Healthcare and Sciences

Product Description

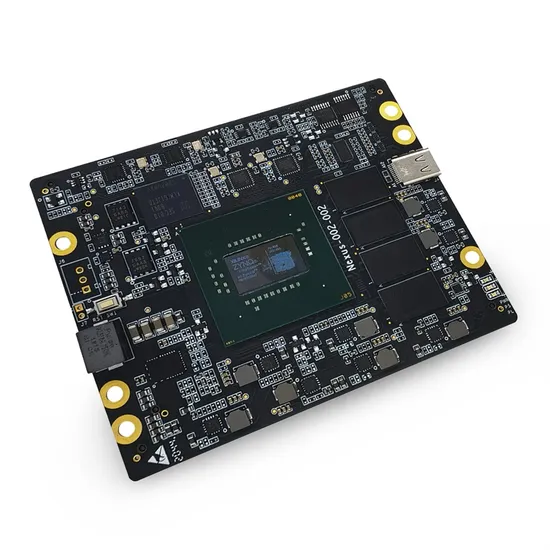

Products Description XILINX ZYNQ XC7Z007 FPGA Development Kit 512 MB DDR3 for Validation SG2625-MU01PC-F FPGA CONTROLLER The SG2625 FPGA Module is an SOM (System on Module) based on Xilinx Zynq 7000 series FPGAXC7Z020/7010/7007S, featuring integrated dual-core ARM Cortex-A9 processor. The SG2625 module has up to 1GB DDR3 SDRAM with x32 data bus width, 4GB eMMC, 16MB
quad SPI Flash, a Gigabit Ethernet PHY, an USB PHY and USB to UART on board. It provides a large number of I/O signals for ARM peripherals and FPGA I/Os through two 0.8mm pitch 120-pin board-to-board connectors, which is ideal for your next embedded design.
SmartGiant also provides customization services to help customers free their hardware, logic, firmware, and software tasks, as well as ODM services from R&D, validation and mass production. Product Specification

Product Name			FPGA Controller SG2625-MU01PC-F
Power Supply Voltage			DC5V; <2A
Power Dissipation			<10W
CPU Clock			Up to 866MHz
DDR3 Clock			533MHz
RAM			Up to 1GByte
Flash			16M Byte(Q-SPI),4G Byte(eMMC)
Ethernet			10/100/1000M ,1 channel.
USB			USB 2.0 OTG, 1 channel.
Serial ports			115200 bps ,1 channel.
Digital I/O			Bank500(ARM) 6pin(Can be configured SPI,IIC,SDIO,UART,CAN) 1.8V Bank501(ARM) 6pin(Can be configured SPI,IIC,SDIO,UART,CAN) 3.3V Bank13 (FPGA)25pin(12 LVDS pairs and 1 single-ended I/O)Can be configured as LVCMOS18 or LVCMOS25 or LVCMOS33. Bank13 is only available in XC7Z020 (SG2625-MU01PC-F). Bank34 (FPGA)50pin(24 LVDS pairs and 2 single-ended I/O)Can be configured as LVCMOS18 or LVCMOS25 or LVCMOS33 Bank35 (FPGA) 49Pin(24 LVDS pairs and 1 single-ended I/O)Can be configured as LVCMOS18 or LVCMOS25 or LVCMOS33
Clock Source Stability			±10 ppm @-40 ~ +105°C
Operating Environment			0 to 50°C / 0 % to 80 % R.H.
Storage Environment	-40 to 70°C / 0 % to 80 % R.H.
Dimensions	75mm×55mm
Thickness	1.6mm
Interface	Two 120pin board-to-board connectors
