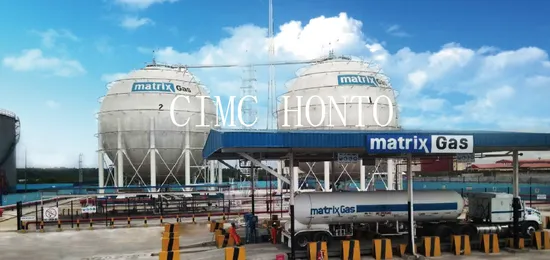

LPG Spherical Tank
CIMC HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc., and owns relevant project references.
Design Code: ASME BPVC VIII-1/VIII-2, GB/T 12337, JB/T 4732
Capacity: 50m3~10000m3 Liquid Gas Spherical Tank, 200m³~20000m³ Gas Spherical Tank
Main Material: SA516, SA537 CL1, SA537 CL2, Q370R
Product Parameters

ASME Standard
Capacity (m3)	600	1500	2000	3000	5000	6000	8000
Fluid	LPG
Main Material	SA516	SA516	SA537 CL1	SA537 CL1	SA537 CL2	A537CL2	A537CL2
Filling Ratio	0.9	0.85	0.9	0.9	0.9	0.9	0.9
Tank Net Weight (KG)	84395	258610	288617	431223	636868	732400	893620
Design Pressure (MPa)	1	1.77	1.77	1.77	1.8	1.77	1.42
Working Pressure (MPa)	0.8	1.57	1.4	1.57	1.7	1.57	1.2
Design Temperature (ºC)	-52/35	-20/50	-20/50	-20/50	-40/50	50	-30/50
Working Temperature (ºC)		-18/40	35	-15/40	-35/40	40	-15/40
Corrosion Allowance (mm)	2.0	1.0	1.5	1.5	1.5	1.0	2.0
Wind Pressure (Pa)		1035	1500	1500	2000	1500	3200
Snow Pressure (Pa)		--	--	--	300	--	--
Seismic Intensity	6 degree	7 degree	7 degree	7 degree	8 degree	8 degree	8 degree

Chinese GB Standard
Capacity (m3)	750	1500	2000	3000	4000	5000	6000
Fluid	LPG
Main Material	Q370R	Q370R	Q370R	Q370R	Q370R	Q370R	Q370R
Filling Ratio	0.9	0.9	0.9	0.9	0.9	0.85	0.9
Tank Net Weight (KG)	106673	205128	286054	438842	535775	676712	792404
Design Pressure (MPa)	1.77	1.77	1.77	1.77	1.77	1.77	1.77
Working Pressure (MPa)	1.57	1.57	1.71	1.77	1.57	1.2	1.57
Design Temperature (ºC)	-20/50	-20/50	-15/50	-19/50	50	50	-19/50
Working Temperature (ºC)	40	40	40	-10/45	0/40	17/40	-15/45
Corrosion Allowance (mm)	1.0	1.0	1.5	1.0	1.0	1.5	1.5
Wind Pressure (Pa)	600	600	500	450	750	890	700
Snow Pressure (Pa)	600	600	450	400	350	--	400
Seismic Intensity	7 degree	7 degree	8 degree	7 degree	7 degree	7 degree	7 degree

*Please contact for more different kinds of tanks with different capacity and standard.
