Electric Normal Precision Sumore Diamond Cut Wheel Turning Machine Metal Lathe Hot

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

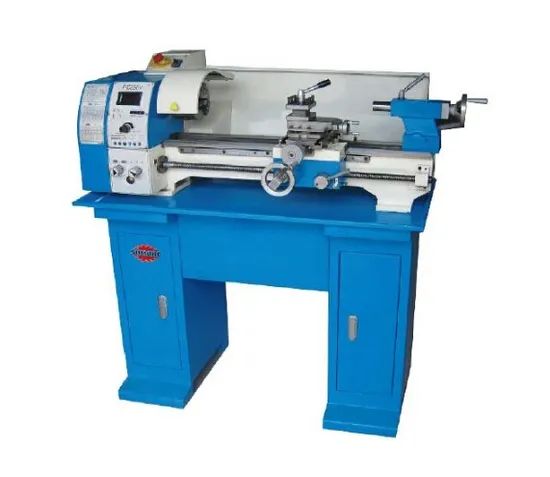

250V 750W Mini Manual Metal Bench Lathe Machine for Sale Sp2124-I
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
Quick Detail:Processing material: aluminum, copper, metal, wood, plastic, etc
Workpiece length: 550mm 750mm
Swing over bed: 250mm
Spindle bore: 26mm
Description:
SP2124-I bench lathe machine is widely used 250 mm swing conventional lathe machine. Thread could be metric and imperial. It is made in China according to quality standard of machines made in Japan, made in Germany, made in Taiwan lathe machine. Features or advantage of lathe machine are as below: A miniature lathe used for all types of cutting. Can be used to turning cylindrical, face, drilling, boring and turning thread. Processing of precision parts, the sample processing and processing of the model can also be used. Chuck guard is with automatic power off. The workpiece length could be 550mm or 750mm. The taper of spindle bore is MT4. Brushless motor is available. Leadscrew guard is available. It could be variable speed or 6 speeds. The bed width of this manual lathe machine is 135mm. Machine stand normal ad upgraded are available. Power supply could be customized 110v/220v. All machines have to pass the checklist of the machine precision before shipment ODE and OEM is available.
Product Parameters

Model	SP2124-I
Max. Swing over bed	250 mm
Distance between centers	550/750mmmm
Width of bed	135mm
Spindle taper	MT4
Hole through spindle	26mm
Spindle speed	6 step
Range of spindle speed	125-2000/50-2500r/min
Range of longitudinal feed	0.07~0.20mm/rev
Range of Imperial thread	8~56T.P.I
Range of Metric thread	0.2/0.4~3.5mm
Top slide travel	60mm
Cross slide travel	130mm/150mm
Tailstock quill travel	60mm
Taper of tailstock quill	MT2
Motor power	750W
Packing Size (L*W*H)	1250/1450*680*560mm
Net/Gross weight	120/140kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs ,,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
