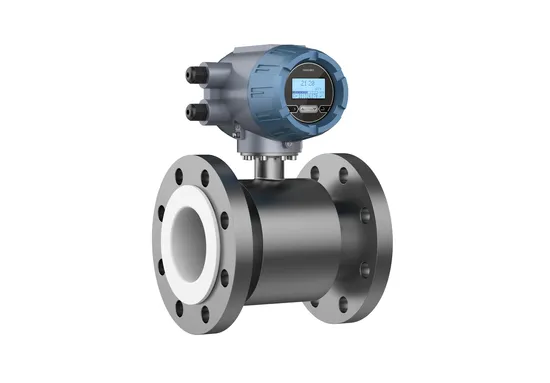

Pangu Flange Electromagnetic flow meter , Integrated Type, Class 0.5. From The Manufacturer.

Product Description

PMF series electromagnetic flowmeters: It is suitable for conductive media with a conductivity greater than 5uS/cm. It has a wide range of nominal diameters, and can adapt to various actual environmental conditions. It has multiple power supply methods and various signal outputs. It adopts a standard RS-485 serial communication interface, supports the internationally universal standard MODBUS-RTU communication protocol, as well as a variety of wireless and wired communication networking methods such as GPRS. It has a cumulative pulse equivalent output. A wireless meter reading system (computer management software and database) that allows remote network access is provided.
Functional Features: Excellent measurement repeatability and linearity Good reliability and anti-interference performance Good pressure-resistant sealing performance Measuring tube with low pressure loss Highly intelligent Maintenance-free Industry Applications:
The electromagnetic flowmeter is a high-precision and high-reliability velocity-type flowmeter, which is widely used in industries such as petroleum, chemical engineering, steel, food, electric power, papermaking, water treatment, water supply, heating, and environmental protection.
Product Principle:
The electromagnetic flowmeter consists of two parts: the sensor and the converter. The sensor is composed of components such as the measuring tube, electrodes, excitation coils, iron core, and housing. After amplifying, processing, and calculating the flow signal, the converter can display the instantaneous flow rate and cumulative flow rate, and output signals such as pulses and analog currents, which are used for the measurement and control of fluid flow. The PMF series electromagnetic flowmeter adopts an intelligent converter, which not only has functions such as measurement and display, but also supports functions such as remote data transmission, wireless control, and alarming.
