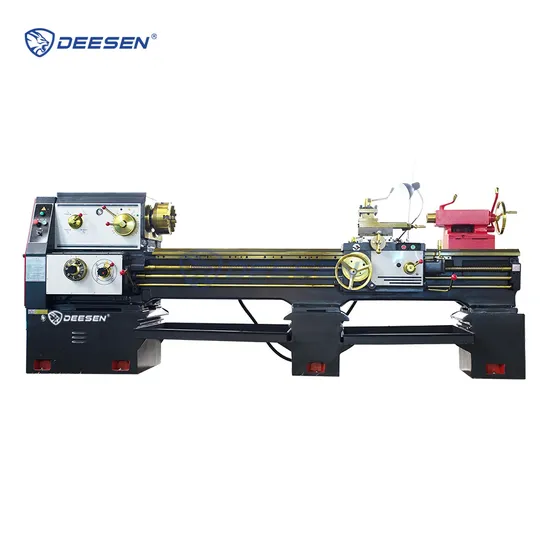

Horizontal High Quality Turning Ca6150 Metal Cutting Lathe Machine Automatic Lathe Machine

Horizontal High Quality Turning Ca6150 Metal Cutting Lathe Machine Automatic Lathe Machine

US$7,000.00-7,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
CA6150
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Max.Swing Over Carriage
500mm
Max.Processing Length
750/1000//1500/2000mm
Max.Swing Over Cross Slide
300mm
Spindle Speed
40-1400rpm
Spindle Motor
4/5.5/7.5kw
Spindle Bore
52/82mm
Spindle Taper
Mt6
Spindle Speed Steps
9steps
Tailstock Tape
Mt5
Tool Size
20X20
Longitudinal Feeds Range
0.0832-4.6569mm/R
Cross Feeds Range
0.048-2.688mm/R
Main Motor Power
5.5kw
Tailstock Quill Diameter
65mm
Transport Package
Wooden Case
Specification
3700mm * 1140mm * 1750mm
Trademark
DEESEN
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
390.00cm * 130.00cm * 190.00cm
Package Gross Weight
2700.000kg

Product Description

Horizontal High Quality Turning Ca6150 Metal Cutting Lathe Machine Automatic Lathe Machine
Product Description
The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.6 The machine adopts high strength four station turret shank size: 25x25mm.Application:1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Specifications
Specifications Ca6150
Capacity Max.Swing over bed 500mm
Max. rotating diameter 300mm
Center distance 750,1000,1500,2000mm
Spindle hole 52mm(82mm)
Spindle Spindle nose ISO-C6(C8)
Spindle tap MT6
Spindle speeds(Number) 36-1600rpm (12 Steps)
Feed Metric threads range(Kinds) 0.5-14mm (18 Kinds)
Inch threads range(Kinds) 2-40/inch (28 Kinds)
Moudle threads range(Kinds) 0.25-3.5mπ (17 Kinds)
Compound rest travel 150mm
Cross slide travel 180mm
Cross-section size of toolshank 22×22mm2
Tailstock Dia.of tailstock sleeve 75mm
Taper of tailstock sleeve MT5
Travel of tailstock sleeve 160mm
Main motor power 5.5/7.5KW
Machine size
(L*W*H mm)
Overall dimensions for750mm 2100×1150×1550mm
Overall dimensions for1000mm 2350×1150×1550mm
Overall dimensions for1500mm 2850×1150×1550mm
Overall dimensions for2000mm 3700x1140x1750mm
Weight(kg) Weight for 750mm 1700kg
Weight for 1000mm 1800kg
Weight for 1500mm 2000kg
Weight for 2000mm 2200kg

Detailed Photos

QUENCHING BED 400MM
WIDTH
The width is larger than ordinary, with high hardness and wear resistance
RAPID TRAVERSE DEVICE
Rapid device for carriage single handto operate
CHUCK AND TOOL POST COVER
Export configuration,Protectthe operator
FOOT BRAKE
Export configration need extra cost.
STEADY REST,FOLLOW REST
Length above 1500mm steady rest andfollow rest are standard

Easy to operate
safe and durable,good practicality
Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise. In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing. In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%. The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing. In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services. Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
