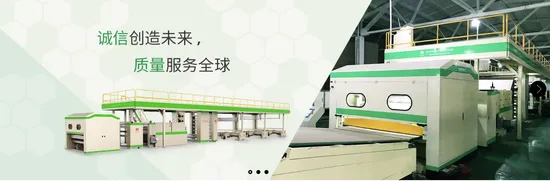

Honeycomb Paper Core Machine
| US$140,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HCM-2000
Paper Core Usage
Industry
Tube Machine Type
Other
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
500cuts/Min
Wall Thickness of Paper Tube
8-100mm
Certification
CE
Condition
New
After-sales Service
24 Hours on Line
Process
Finishing Process Machine
Usage
Packing Paper Machine
Automatic Grade
Automatic
Computerized
Yes
Dimension(L*W*H)
24000*3800*2500mm
Power(W)
30kw
Weight
20t
Transport Package
Sea Worth Package
Trademark
shenxi
Origin
China
HS Code
84414000
Production Capacity
20 Sets/Year
Packaging & Delivery
Package Size
3000.00cm * 500.00cm * 300.00cm
Package Gross Weight
30000.000kg
Product Description
This machine is the newest type of honeycomb core making machine.It uses the raw paper to produce honeycomb paper in one stop. Which means connecting machine and cutting machine can be left out. The advantage of this machine is to save labor cost and high degree of automation.| No. | Item | HCM-2000/1600 |
| 1 | Thickness of honeycomb paperboard | 6-100mm |
| 2 | Width of paper core (before expanding) | 2000mm |
| 3 | Honeycomb core cutting speed | 0-800 cuts/min.(decided by thickness) |
| 4 | Cutting tolerance | +-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm) |
| 5 | Applicable paper | 90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers) |
| 6 | Qty of paper reels | 6 |
| 7 | Cell size | 8-40mm (according to customer choice, choose two cell sizes) |
| 8 | Heating drying method | Electric heating /steam heating (according to customer condition) |
| 9 | Total Engine power | 42KW |
| 10 | Installation power | 90kw (electric heating system) |
| 11 | Normal working power consumption | 40-60kw (electric heating) |
| 12 | Man power | 3 |
| 13 | Layout | 27000X4500X3000mm |
| 14 | Weight | 30 Tons |
| 15 | Power supply | Three phases, 380V/50Hz |
| Inspection | buyer will send a third -party person from SGS or TUV etc. company to seller's factory before machine loading, to confirm everything confirm to techinical spec. in contract before 2nd payment. | ||||||
| Payment terms | 30% paid as down payment, 70% paid before delivery after testing successfully in China | ||||||
| Warranty | two years for machine. the buyer pay the new spare parts when damaged by themselves, otherwise the seller provide new one. | ||||||
| Installation | 3 persons for honeycomb line for 1 month; 2 person for MRS and slitting machines for 15 days; 1 person from Justyou for 15 days, and 1 person from converyor& lifter for 10 days. one person $150/ day. (our shenxi person only need $100/ day) | ||||||
