US$0.15
5,000-49,999 Watt
US$0.14
50,000-299,999 Watt
US$0.13
300,000-1,499,999 Watt
Basic Info.

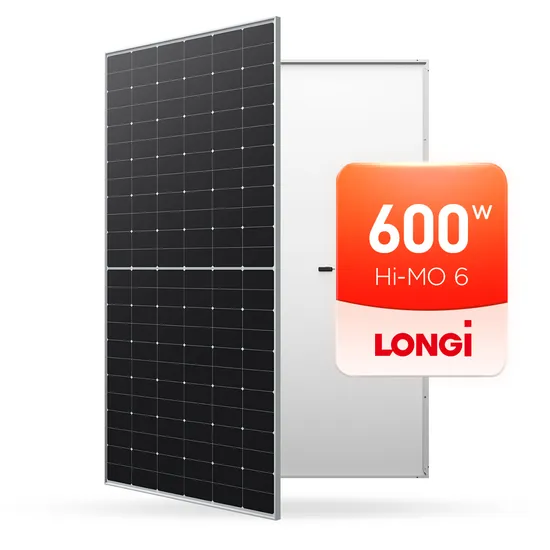

Model NO.
Hi-MO6 560-600W
Number of Cells
144 Cells (6X24)
Certification
ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Front Side Glass
3.2.0mm Coated Tempered Glass
Frame
Black/Silver, Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Wind / Snow Load
2400PA / 5400PA
Operate Temperature
-40c~ +85c
Maximum System Voltage
1500V DC
Packaging
36 PCS./Pallet, 936 PCS./40hc
Transport Package
Box with Pallets
Specification
2278*1134*30mm
Production Capacity
5gw/Year
Product Description
Product Description
Module model | LR-72HTH-580M | LR-72HTH-585M | LR-72HTH-590M | LR-72HTH-595M | LR-72HTH-600M |
Maximum power (Pmax/W) | 580 | 585 | 590 | 595 | 600 |
Open-circuit voltage (Voc/V) | 52.21 | 52.36 | 52.51 | 52.66 | 52.81 |
Short circuit current (Isc/A) | 14.20 | 14.27 | 14.33 | 14.40 | 14.46 |
Peak power voltage (Vmp/V) | 44.06 | 44.21 | 44.36 | 44.51 | 44.66 |
Peak power current (Imp/A) | 13.17 | 13.24 | 13.31 | 13.37 | 13.44 |
Products SeriesExplorerClassic, but with revolutionary changes. Unique high-efficiency HPBC cell structure sets new standard for PV technology. High-efficiency Cells |Aesthetic Appearance|Outstanding Performance|Market-leading Reliability
ScientistBeing better is our standard. Propelling the clean energy transformation into the Terawatt Era with ultra-high performance. Prime Efficiency| Market-leading Reliability|Upgraded Service|Extended WarrantyGuardianEmpowering an intelligent future. Equipped optimizer delivers smarter life. HPBC + Intelligent Optimizer Intelligent Monitoring|Rapid Shutdown|Real-time Optimization|Increased Capability
ArtistTechnology and art in unison. Powering a colorful life with artistic innovation. HPBC+ Stunning Appearance Efficient Cells |Lighting up the Architectural Inspiration|Connecting Life and TechnologyPictures and Packages
Tier 1 Solar Module
About Us
Solar ProjectsResidentialThousands of houses around the globe are equipped with Matesolar solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.
Commercial
Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And Matesolar was, is, and will always be a reliable partner which you won`t regret to choose.
Utility ScaleWith years of professional experience, Matesolar can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.
FAQ
Q1: Can the product be shipped to my area?A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.Q2: What about the lead time?A2: 10 Working days for<200kW requirements, we need to negotiate if your needs ≥200kW.Q3: How can I make payment?A3:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipmentQ4: what's the warranty?A4:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement
