High Speed Paper Edge Protection Board Machine

Product Description

High Speed Paper Edge Protection Board Machine
Automatic Paper Corner Protector SANPPL-120G is one paper protector production line with speed of 50m/min. This line Can produce V, U and Flat type protector though changing moulds. Similar to Eberle in France.
Technical Specification

Model	SANPPL-120G
L protector size(mm)	25-100 (can be symmetrical and assymetrical)
Thickness(mm)	normally 3-6mm, special order for max thickness of 8mm
Applicable inner paper	360-600g/m2 fluting paper or corrugating medium paper
Applicable surface paper	175-250gsm craft paper
Core diameter of paper roll	3" (76mm) (4" or other size must be confirmed when making order)
Max. quantity of Layer	13
Max. speed	50m/minfor length not smaller than 800mm.
Control system	PLC, servo motor, Touch screen (HIM) with automatic alarm and failure notice, easy for operation and adjustment. With output counting.
Paper stands	Suspended stands with hoist for inner paper paper.
Forming wheels	chamber hanging type, easy to change moulds
Method to load paper roll	Load inner paper rolls by hoist (along with machine). Load surface paper roll by hydraulic manual car (buy by the buyer) which is also required to move jumbo paper roll. No need to stop machine when loading paper rolls.
Applicable paper roll diameter	max. 1300mm
Paper feeding and compounding	Step type with complex structure
Gluing system	Cascade type gluing system
Glue heating	electrical heating with temperature control system
Glue feeding	Automatic feedingby diaphragm pump
Pressing adjustment	Pneumatic pressing to protect paper and easier operation
Protector heating	electrical heating
Cut method	Hydraulic cutting
Quantity of cutter	1
Moving of cutting head	servo motor controlled by PLC
Min cut length	50cm
Cut tolerance	± 1mm
Stacker	Automatic stacking
Motor for forming section	two motors with inverter, with high power, direct-connected reducing motor
Power supply	Motor power: 20KW protector heating power: 6.5KW (normally for winter) glue heating power: 4.5KW (normally for winter)
Air supply	0.6Mpa, 0.1m3
Total weight(MT)	4.5
Dimension(m)	24.5× 2.3× 4
Operator	2-3 workers
Required container	One 40" container

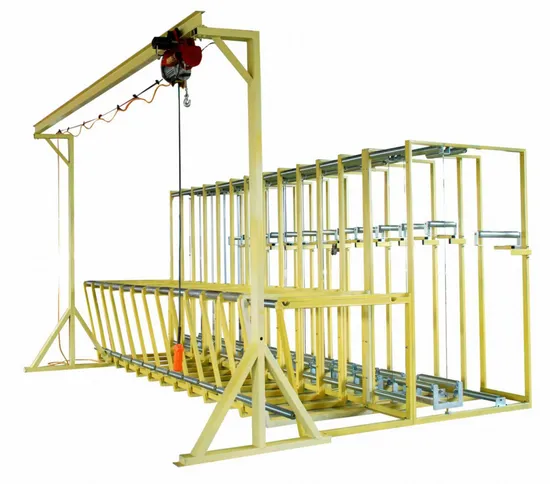

G paper stand
Forming part
G gluing system
G cutting system
GL automatic stacking system
Main Features
1) Suspended paper stand with buffering effect, replace the paper rolls with hoist, no need to stop the machine.
2) Automatic controller for glue temperature ensures the good quality even in winter.
3) Heating system for production line, makes the protectors stronger.
4) Molding wheels adopt box type suspended structure, easy to change mould.
5) Touch screen and human-machine interface of servo system, the operation is more personalization, the operation for adjust air cylinder is more convenient.
6) Automati alarm, malfunction, easy to adjust and maintain .
7) Hudraulic cutting system, maximum frequency is 90 times/min.
8) Automatic stacking system with counter.
9) Through changing tools, it can produce U profile protector and Flat board.
Our Service One year guarantee for whole machine, all life follow-up service.
24 hours technical support by email.
Technicians oversea set-up and workers training.
Use- friendly English for operation system.

Packing & Delivery Packaging Details:Film+ honeycomb board packing
Delivery Detail:Shipped in 30 days after payment
THE PACKING IS SEAWORTHY AND SAFE.
