Disc Harrow Opposing Farm Rake Light Duty

Product Description

Product Description

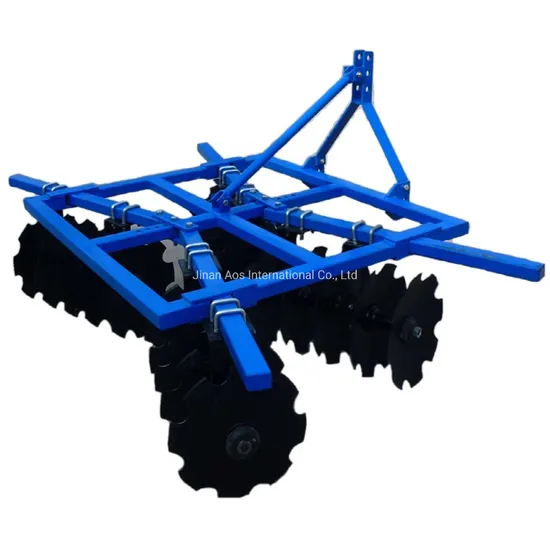

The disc harrow is mainly used for crushing soil work, and it is directly used for turning the ground when the soil quality is good. If the soil quality is not very good, the soil should be deeply ploughed with the disc plows firstly, then the soil should be broken up by disc harrows so that to make the soil ploughing effect better.
Different types of disc harrows are matched according to the models of the tractors and the requirements for deeper depth.
The disc harrows are divided into light disc harrows, medium disc harrows and heavy disc harrows. Among them, the light disc harrow and the medium disc harrow are three-point hitch with the tractor,and heavy duty disc harrow are tractor trailed.

Detailed Photos

Product Parameters

Model	Working width	Working depth	Q'ty of disc	Disc diameter	Overall weight	Matched power
1BQD-1.3	1300mm	100-140mm	16pcs	460mm	330kg	30-40hp
1BQD-1.6	1600mm	100-140mm	20pcs	460mm	360kg	35-45hp
1BQD-2.0	2000mm	100-140mm	24pcs	460mm	380kg	50-60hp
1BQD-2.4	2400mm	100-140mm	28pcs	460mm	440kg	60-70hp
1BQD-3.0	3000mm	100-140mm	32pcs	460mm	510kg	80--90hp
1BQD-3.6	3600mm	100-140mm	40pcs	460mm	580kg	90-100hp

Linkage With Tractor Shows

Related Farm Machines

FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor and attachment tools?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.

Packaging & Shipping
