Qm K Series Tgg Plug Circular Self-Locking Push-Pull ODU Alternative RJ45 M12 Connector

Product Description

Product Description

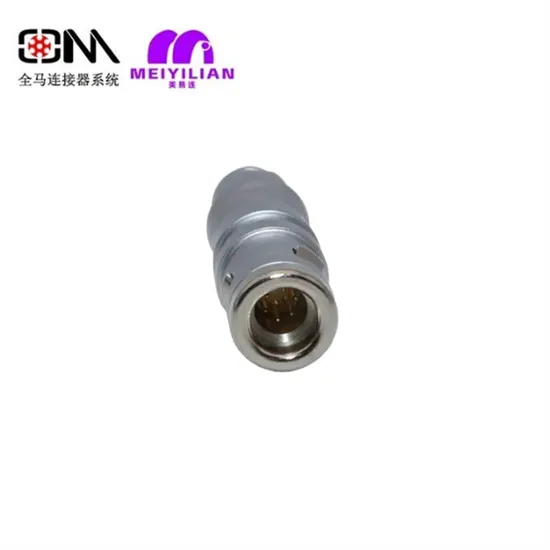

TGG plug connector, waterproof
K series connectors are suitable for extremely harsh outdoor environments, protection level can be up to IP68
K series connectors are specially designed for outdoor applications
All models of this series can be waterproof when plugged in, and can reach the protection level of IP68 when properly assembled with the corresponding cable.
Product Features
Tail cap with sheath
With cable clamp
Multiple positioning pins prevent misinsertion
Related Applications
Infantry vehicle
Photoetching machine
Automotive dynamic performance test system
Detailed Photos
Features
The k series has the same insulator as the B series, and its main features are:
Fast push-pull self-latching system;
Rugged shell design is suitable for extremely harsh working environment;
360° shielding provides all-round EMC protection (anti-electromagnetic interference);
Positioning pin system, G is a standard positioning pin, used for connector alignment;
2-48 multi-cores can be selected;
Welding, printed circuit board pin core(Straight type or bending type);
Various of positioning pins options can avoid mixed insertion between similar connectors;
High-density installation can save space.
Specification
Mechanical properties and environmental factors:

Specification
Number of inserts	>5000
Humidity	At 60ºC, the highest humidity can reach 95%
Temperature rang	-55ºC ~ +200ºC
Vibration	10-20000Hz, 15g
Mechanical shock	100g.6ms
Salt spray corrosion test	>96h
Protection level	IP68
Connecting mode	Push pull self-locking

How to choose model
Product Parameters
Technical parameters of TGG plug
CatCategory series
Model: TGG
Series :0K, 1K, 2K, 3K
With Tail Cap
Without Tail Cap

Item		Size
Series	Model	A	L	M	S2
OK	TGG	11	34	23	7
1K	TGG	13	42	28	9
2K	TGG	16.4	51.8	36	13
3K	TGG	18.9	60	41	15
4K	TGG	25.5	74	54	20

Company Profile
QM connector is a Chinese manufacturer of waterproof push-pull connectors. We aim to provide high-quality connectors for our customers. The push-pull connector is a small and convenient spare part for your equipment. It can be used in medical devices such as endoscopies, can be used in national defense garments, base stations for telecommunication, and automatic machines such as dispensing machines, etc. Our waterproof self-locking connectors have different series that will fit your requirement in different equipment. We also provide customize service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfaction is our motivation!
a) Good after-sale service, all questions will be replied to within 12 hours.
b) Customized design is available. ODM&OEM are welcome.
c) We can provide a free sample, but the buyer should handle the posting fee.
d) Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e) High quality and the most competitive price.
f) Advanced produce and inspecting equipment.
How to produce?
We provide Lemos-compatible connectors. waterproof push-pull circular M12 metal waterproof connector. Our factory is located in Shenzhen, China. If interested. feel free to contact us for samples, specifications, and quotations. Looking forward to receiving your message and solving your connection problem. PUSH PULL WATERPROOF CONNECTOR LEMOS-LIKE B SERIES CONNECTOR CUSTOMIZED CABLE ASSEMBLY 20 YEARS EXPERIENCE IN CONNECTOR CE/ ISO9001(2008)/GJB9001C-2017/ROHS/SGS CERTIFICATE MEDICAL/INDUSTRIAL/OPTICAL/MEASURE/NAVIGATE/DRONE PROVIDE SAMPLE AND TECHNOLOGY SUPPORT
FAQ
Q1. Are you a manufacturer or trading company?
QUANMA: We are a professional manufacturer of push-pull connectors our sales service
department is in Shanghai and our factory is in Shenzhen Q2. What's the lead time after placing an order?
QUANMA: Normally we will deliver your order 7-12 working days after placing the order. Q3. Is your connector compatible with another brand connector? QUANMA: B series is compatible with the LEMOS connector.
Q4. How many fields can be used for this kind of connector? QUANMA: QUANMA connector is now widely used in the fields of measurement, medical,
audio-video, national defense use, navigation, security, aviation, industrial control, automotive and power, etc.
Q5: How are our orders packed and delivered? QUANMA:
Our connector will pack and ship to you safely. We will pack it as you required.
