Commercial Professional Design Stainless Steel Refined Oil Refining Equipment for Sale

Product Description

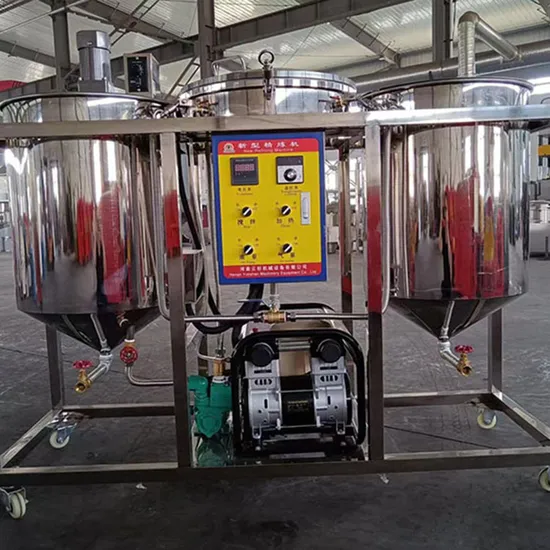

Commercial professional design stainless steel refined oil refining equipment for sale
Product Description
It's made of stainless steel, can realize the dephosphorization, decolorization and drying for crude oil. It is the most economical equipment for mini refining, the process temperature is controlled by user, all are displayed by instrument, the operation is simple and safe. Supplementary materials are controlled by special devices. The refined oil is good, clear and bright, no colloid precipitation, and it does not foam when cooking. It can be bottled directly for sales.
Product Features
1. Using stainless steel material, it can realize dephosphorization, deacidification, decolorization and drying of crude oil.
2. According to the needs of users, constant temperature decolorization can also be carried out.
3. This is the most economical equipment for small refining, the process temperature is controlled by people, all displayed by the instrument, and the operation is simple and safe. Auxiliary materials are controlled by special devices, so oil spills do not occur.
4. After simple filtration, the pressed crude oil can only remove the particulate impurities in the crude oil, but cannot remove the colloidal impurities such as phospholipids in the oil. This machine can realize dephosphorization, deacidification, decolorization and alkalization.
5. The finished oil will not bubble or precipitate in the pot.
6. The refined oil can reach the national secondary oil standard and can be directly bottled and sold in supermarkets.

Model	YS-500A
Air pump power (kW)	1.1KW
Self priming pump	1*0.37KW/220V
Heating tube (kw)	3*2
Overall dimensions	1500*580*1350
Overall weight	140KG
Weight of mixing tank	1
Required voltage	380V

Model	YS-750B
Air pump power (kW)	1.1KW
Self priming pump	2*0.75KW/220V
Heating tube (kw)	6*3
Overall dimensions	3120*830*1550
Overall weight	280KG
Weight of mixing tank	2
Required voltage	380V

Model	YS-750C
Air pump power (kW)	1.1KW
Self priming pump	3*0.75KW/220V
Heating tube (kw)	9*3
Overall dimensions	3900*830*1550
Overall weight	350KG
Weight of mixing tank	3
Required voltage	380V

Structure Description
The small edible oil refining machine is composed of a hydration system, a fine filtration and decolorization system, a variable speed system, an oil delivery system, a transmission and lubrication system, an electrical control system, a rack, etc.

Degumming (dephosphorization): Adding hot water to the crude oil causes the soluble impurities in the crude oil to agglomerate into blocks. Then, through sedimentation separation, the soluble impurities (phospholipids, proteins, mucus substances, etc.) are removed. The presence of these impurities makes the oil cloudy, dark in color, and has an unpleasant odor, which has a negative impact on the subsequent oil refining process and leads to a decrease in the quality of the finished oil.
Deacidification (alkaline refining): Adding alkaline solution to the crude oil causes a neutralization reaction between the free fatty acids in the crude oil and the alkaline solution, thereby removing the free fatty acids. The byproduct of deacidification is soap residue, which is the raw material for soap production. The presence of free fatty acids in oil can reduce the smoke point, flavor, and quality of the oil.
Bleaching (including drying): Heat the bleaching pot to generate steam, and then vacuum it to remove the steam and dry the oil. After drying, white earth is added to the crude oil to remove pigments and other impurities by utilizing the adsorption effect of white earth. After decolorization, the color of palm oil becomes clearer.
