Rubber Tire/Plastic/Wood/Scrap Metal Crusher Recycling Double Shaft Shredder Manufacturer

Product Description

Rubber Tire/Plastic/Wood/Scrap Metal Crusher Recycling Double Shaft Shredder ManufacturerProduct Description

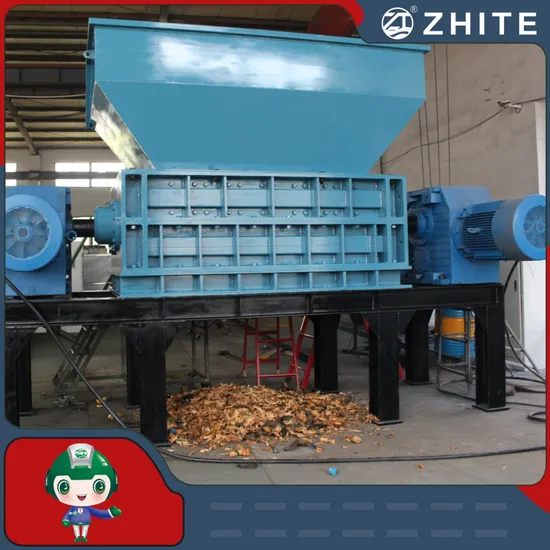

The domestic waste shredder is a kind of double-shaft crusher, mainly composed of silo, crushing chamber, crushing knife shaft, power mechanism, frame, discharge bin, observation and access port and other components, the domestic waste shredder is widely used in all kinds of domestic waste crushing reduction treatment.
The domestic waste shredder is equipped with a sealed bin at the top, the feed side can be set up curtain bars, the domestic waste shredding work can effectively prevent the escape of crushing dust in the bin, the lower part of the shredding chamber, the shredding mode is shear shredding crushing, the crusher has the advantages of high crushing efficiency, good crushing effect, long service cycle, energy saving and environmental protection, intelligent and reliable.
It can completely break all kinds of hard materials and ductile materials in domestic waste. The tearing, extrusion and shearing of the knife shaft will break all kinds of garbage such as various hardwood, thin iron and ductile materials to the size below 100mm, and the broken domestic waste will be sent to the subsequent equipment for the next step of sorting. It is mainly suitable for crushing and reducing work in large waste treatment center. Product Parameters

Model	Blade thickness(mm)	Blade diameter(mm)	Crushing chamber size (mm)	Capacity(t/h)	Power(kw)	Overall size(m)	Weight(kg)
600	15-30	260	600*550	0.3-5	18.5*2	3*2*1.1	2850
800	15-40	300	800*600	0.5-6	22*2	3.3*2*2.42	4200
1000	15-40	350	1000*700	1-15	30*2	3.5*2*2.82	6500
1200	30-50	400	1200*800	1.5-20	37*2	3.8*2*2.82	7800
1400	30-60	450	1400*900	2-25	55*2	4.4*2*3	9600
1600	40-60	600	1600*1000	3-35	75*2	4.7*2*3.1	12560

Technical characteristics
1.Adopt double row knife shear crushing, unique double row spiral crushing knife, especially for a variety of hard materials in life, tough materials, durable knife, fixed knife;
2.Designed special device to prevent tough materials from winding the blade;
3.Small power motor drive, high efficiency, low energy consumption;
4.Can be equipped with lifting device, direct automatic feeding, saving labor;
5.Can realize the whole PLC control, simple operation, low maintenance cost.
6.Self-protection measures. If the broken hard object exceeds the power requirement, turn it over twice and then break it again. If the hard object is not broken after two turns, the device will give an alarm.Process Flow
1.Heavy chain plate conveyor
Heavy chain plate conveyor is a kind of continuous material conveying machinery, in this process, heavy chain plate conveyor undertake the garbage loaded by clamps or loaders, and transported the household garbage evenly to the next process, suitable for loose, blocky and large quantity feeding process in household waste sorting line, and can transport large materials,can work reliably in high temperature and high humidity harsh environment, It is especially suitable for transporting large, high temperature and sharp materials, and can work reliably in open air and wet and harsh environments.2.Rotary screen
In this process, the roller screen equipment is set up two stages of screen holes before and after, and the diameter of the first stage screen hole is 20mm. The fine particles such as gravel, broken brick and humus are screened out and collected by the discharge belt conveyor under the fine screen at the bottom for further processing. In the second stage, the diameter of the screen hole is 40mm, and the 20mm-40mm material in the domestic waste is mostly degradable organic matter, which is collected by the coarse material discharge belt conveyor at the bottom and then further processed. The material on the screen is ≥80mm, mostly combustible materials such as plastic, paper, bamboo and wood, which are transported to the air separator for further screening processing through the conveyor belt at the end of the drum screen.
3.Magnetic separator
Domestic waste contains a certain amount of ferromagnetic metal, the size and total amount of metal materials is small, so it can be selected through the effect of magnetic force, the selected adsorption on the outer surface of the magnetic separator discharge tape, with the movement of the discharge belt into the aggregate box, recycling and sale.4.Winnower
The equipment is mainly screened ≥80mm material on the screen (mainly plastic, paper, bamboo, convenient bags, etc.), to distinguish light materials and heavy materials. The equipment is mainly composed of skeleton, warehouse plate, bottom plate, screen, leg and so on. And equipped with 2 set 18.5KW high power centrifugal fans, installation of dispersion device.
5.Belt conveyor
5.1 Belt conveyor 1 (roller screen feeding belt conveyor to transfer material from chain conveyor to roller screen)
5.2 Belt conveyor 2 (Overscreen discharge belt conveyor, conveying the material on the drum screen to the winnower)
