PVC Bag Sealing Automatic High Frequency Welding Machine for Medical Bags_Book Cover_Plastic Badge Holder Making Hf Auto Welder

Product Description

PVC Bag Sealing Automatic High Frequency Welding MachinePVC Bag Sealing Automatic High Frequency Welding Machine belongs to the high frequency equipment in PVC bag automatic making by film rolls, this machine by electronic oscillation tube produces high frequency electromagnet fields, processing PVC Film between the upper and lower electrode of HF/RF electromagnetic field in automatic motorized roll material feeding system to exert the process of cutting, welding, and edge trimming, the internal friction molecules by polarization and mutual movement itself to generate heat, under the pressure of the mold to achieve the purpose of welding,because of bonding achieved by heated material itself, and only in the localized pressure, the PVC bag is very nice in its tear-resistance and appearance, material that can be used with HF/RF sealing include polyurethane, PVC and Polymers like PET, EVA and some ABS
Product Description 01: Application
PVC Bag Sealing Automatic High Frequency Welding Machine adopts high frequency dielectric welding technology in PVC bag making from two layers to five layers of laminated seam bonding, the edge trimming also can achieved during shaped welding, high frequency energy delivered to the thermoplastic films placed between upper and lower electrode, two thru five layers plastic films can be constituted by this HF welding machine, the shape of upper electrode (mold) is made according to the desire embossing or welding shape on the plastic, and the lower electrode could be the shape of product appearance or just a piece of metal plate, the top electrode is connected to the hydraulic cylinder in order to apply pressure when welding and edge cutting, high frequency provide a local heat only in the melting line through the excitation of polymer molecular flip in friction, resulting in melting in localized shaped line and mixture the pressed laminated material element together, then top electrode apply pressure above the material stopped on the bottom electrode. Bringing a complete fusion, then stop applying the high frequency current, the brief cooling enhance the material solidification, material are welded at the point of contact with die, the strength of materials is stronger that the original that after high frequency welding, and the melting heat is generated from material inside, which is quick cooling down without causing any deformation around the material itself, So, the high frequency welding of automatic roll feeding conjunction in PVC bag making is always first-considered
02: Parameter

Name	PVC Bag Sealing Automatic High Frequency Welding Machine
Model	KLR-8000G
HF Power	8000w
Voltage	380v,3p, 50/60HZ
Installed Power	10KVA
Upper electrode	500*700mm
Lower electrode	500*700mm
Range of temperature	30~200 adjustable
Welding time	0~10s adjustable
Productivity	Equal or less 6500times/8h
Frequency	27.12MHZ±0.6%
Oscillation Tube	7T69RB
Anti-spark System	NL-5557
Rectifier	Body type high-pressure silicon reactor
Cooling way	Air Cooling
Protection way	Spark preventer and overcurrent preventer
Color	Green or customized coating
Press Stroke	200MM
Max pressure	350kgs per square centimeters
Press operation	Pneumatic
Available material	PVC,PEVA,APET, GAG, TPR,MPE, EVA,PET, PETG/GPET,TPU,PU,PE
Overall Size	3.5*2*2.2m
Weight	1000kgs

03: Character
High frequency welding and cutting process simultaneously
Separated continuous flattening device for rigid film if i need
Mold heating function available, enables ease of melting in welding
Customized work table, dimension, electrode holder dimension, tooling
Support quick change welding mold for versatile shapes in welding and cutting
Transmission system adopt wear-resisting colloid material do not scratch
Automatic process in layers sealing, edge trimming and roll material feeding
The high frequency processing achieves high precision and big area contra-position
Equipped with high frequency stabilizer and HF interference shielding enclosure
Length, width and radian of welding area can be adjusted by change welding mold
Servo-motor automated feeding system to exert compact structure to save footprint
High sensitive 5557 anti-spark device to protect the welding mold and welding material
Human oriented mechanical frame design. And compact structure and robust construction
PLC and HMI touch screen operation, making the operating process simple and time-saving
European model square high frequency vibration barrel, more reliable and stable in output

Detailed Photos

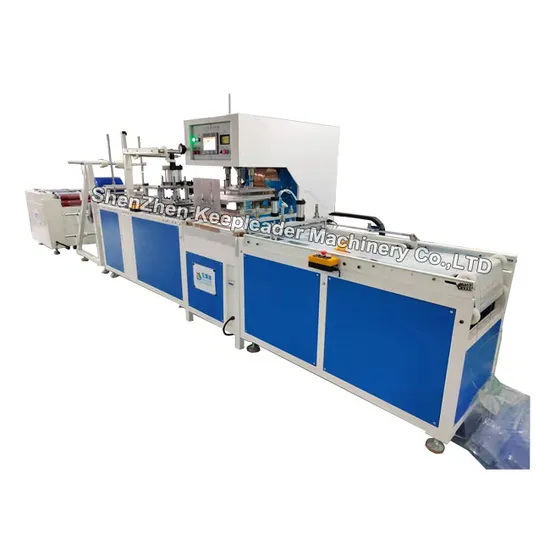

PVC Bag Sealing Automatic High Frequency Welding Machine configues units of auto tranfering system, flattening deivce, punching Sect,High Frequency sealing,welding and collecting system for automatic production in PVC bag making

Machine Uses PVC Bag Sealing Automatic High Frequency Welding Machine is the principle of high frequency oscillation tube emits high frequency electromagnetic waves in the oscillation barrel,which are transmitted to the upper and lower electrode to exert material itself localized heat by polymer inside friction of polarization molecular, so that the PVC plastic material can generate heat energy, when the heat energy reaches the melting point of PVC material. The welding and fusing pressing is carried out, the welding temperature is uniform inside and outside, and the heating speed and temperature are controllable, this HF/RF welding machine is conjunct with rolling material auto feeding system for auto production in PVC bag making

Contact Us PVC Bag Sealing Automatic High Frequency Welding Machine can be modified to exert the process of welding, cutting, edge trimming in making, PVC Bag, urine bag, blood bag and other various shaped lamination seam sealing bag, if you cannot find your concerned elements or you have exceptional demands in your production, please let us know its details for tech verification prior to offer, the experienced staff members in keepleader are always ready to work with you in sharing their solution and ideas for your comparison
