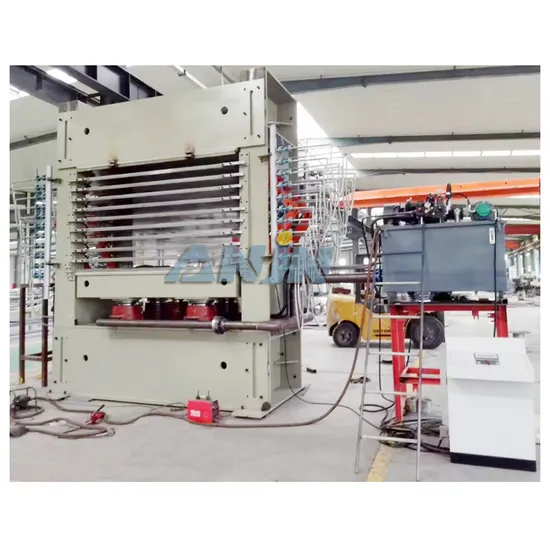

Fully Automatic Plywood Lamination Hot Press Line

Product Description

Characters of Fully Automatic Plywood Lamination Hot Press line:
1. Heavy,solid and reliable complete structure.
2. Plates has double enters and double exits,which ensure a high efficient and small temperature difference
3. Each platen has his own control valve. This ensure a easy maintenance in future.
4. Input and output tubes of steam and heat conduction oil are alternative
5. Oil cylinder with bigger diameter,heavy duty. And inside pillar is solid while others maybe hallow
6. Closing time is very short.
7. Electric elements: Famous brand. Hydraulic pressure station is made in Taiwan
8. OMRON PLC Control with touch screen
9. Electrical Brand:OMRON and ABB
10. The in feed&out pipe is made of PTEE,but others may use PVC.Our is more durable
11. Plunger made by 15mm condensing cast iron and chromium plating process.
The parameter of Fully Automatic Plywood Lamination Hot Press line:

MODEL	BY214×8/6-15
Nominal pressure (KN)	6000
Finished piece dimensions in chi	3x6', 4x8'
Hot-press plate sizes (mm)	2700×1370
Opening(mm)	70
Floor number	15
Diameter and quantity of pressure cylinders (mm)	Φ360/2
Working stroke (mm)	1050
Max. working pressure (MPa)	25
Closing speed (m/min)	4
Total power (kw)	30
Overall dimensions (mm)	6050×1500×5600
Weight(kg)	35000

Siemens brand touch screen
Brand: Simens
Original: Germany
Six modes data can be saved to do different kinds of boards.
Five different pressure control, Oil-way visible, emergency alarm system, temperature pressure real time monitoring system.
Siemens motors & Hydraulic station,
includes motor,oil pump and valve block etc.High quality from famous brands. The whole machine body is heavy,solid and reliable complete structure, which is 3-4 tons heavier than others. Long life span.
Plate material is high quality Q345B.
made by CNC high precision machining center.
Hole tolerance: 0.5mm, Flatness and parallelism tolerance: 0.1/1000.Lmm, Ra 1.6mm
Double input and double output circuit.
Four valves for each oil path.
Input and output tubes of steam and heat conduction oil are optional.
Opening 70mm/100mm
Layer 15 or 10,or OEM.
Closing time 12-15seconds.
