DP-1300 automatic nonwoven fabric /Thermal Paper Roll Slitting Machine

Product Description

Product Description

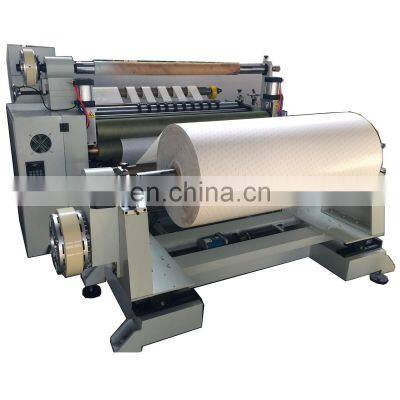

DP-1300 Thermal Paper Roll Slitting Machine
Funcional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Model	1300 slitting machine	1600 slitting machine
Max Feeding Width ( mm )	1300	1600
Main Engineer Power ( KW )	6	6
Speed (T/M )	120	120
Size ( mm )	2400*2000*1300	2400*2300*1300
Weight (kg)	1200	1500
Rewinding diameter ( mm )	600	800
Winding diameter ( mm )	450	450
precision ( mm )	±0.10	±0.10
Power	380V 50HZ	380V 50HZ
