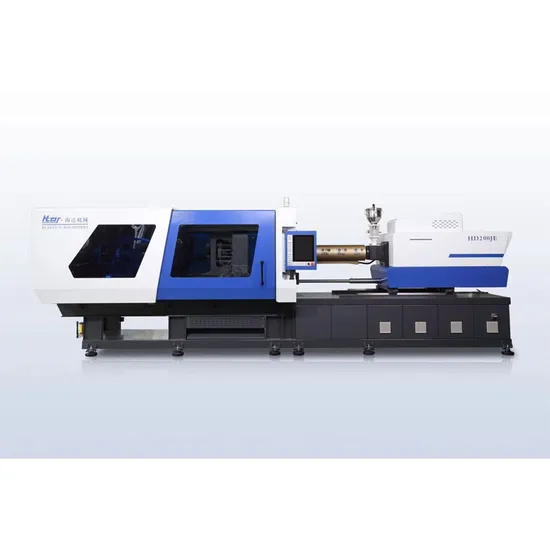

Haida HD200je All-Electric Injection Molding Machine

Product Description

Product Description
HDJE Full-Electric Series:
Mode locking unit>>Optimizing the performance of the clamping mechanism, reducing the inertia of the movement, opening and closing the mould quickly, smoothly and without vibration, to meet the demand of opening the mould for precision products;. The moving die supports the heavy die slide block to reduce the friction coefficient.
______________________________________________________________________________________________________________________ Injection unit>>Low coefficient of friction injection structure, rapid precision injection molding, the fastest speed up to 500 mm/s.
______________________________________________________________________________________________________________________ Servo Drive system>> By matching the servo motor and the servo drive reasonably, the driving efficiency is further improved, the high precision and high response are realized, and the energy consumption of the whole machine is further reduced.
______________________________________________________________________________________________________________________
Precision&Environmental Protection and energy conservation>> The pressure is controlled at 0.1 mpa, the position is controlled at 0.01 mm, the speed is accurate to 0.1 mm/s, the repeated positioning accuracy is high, and the product quality is guaranteed.
Driven by servo motor, low noise, bring customers a clean production environment. Compared with the traditional injection molding machine electricity saving 25%-80% , water saving 80-90% .
______________________________________________________________________________________________________________________
Basic Information:

Number Item

HD200JE

Category

HDJE Series

OEM

Available

Warranty

1 Year

Factory

Yes

Model NO	HD200JE		Computerized	Computerized
Certification	CE, ISO9001:2008		Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLD
Style	Horizontal		Packaging Details	wooden pallet
Plastic Type	Thermoplastic		Machine Type	Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition	New		Energy Saving	Servo Energy Saving
Brand Name	Haida		Production Capacity	100 Set/Sets per Month
After-sales Service Provided	Engineers available to service machinery overseas		Warranty of core components	1 year
Place of Origin	Zhejiang,Ningbo,China		Local Service Location	Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

Detailed Photos

HDJE series aims to achieve high injection moulding repetition rate and high productivity.With stable and reliable injection mechanism,professional screw barrel plasticizer,high precision temperature field closed loop control,high rigidity clamping mechanism,servo motor and servo drive matching reasonable optimization,to ensure the repeated precision of plastic products,production efficiency significantly improved.

Product Parameters

ITEM		UNIT	DATA
			A	B	A	B
Injection Unit	Screw Diameter	mm	36	40	40	45
	Screw L/D Ratio	L/D	21.3	21	21	24
	Injection Volume	cm3	183	226	282	358
	Shot Weight	g	166	206	257	326
	Plasticizing capacity	g/s	22	30	27	39
	Screw Speed	rpm	400		350
	Nozzle Contact Force	kN	39.2		54
	Heating Power	kW	11	13	13	16
	The Injection Unit		450		780
	Injection Speed	mm/s	200		200
	Injection Rate	g/s	185	229	229	289
	Injection Pressure	Mpa	260	210	260	210
	Dwell Pressure	Mpa	208	168	208	168
	The Injection Unit		450h		780h
	Injection Speed	mm/s	350		350
	Injection Rate	g/s	324	400	400	506
	Injection Pressure	Mpa	260	210	260	210
	Dwell Pressure	Mpa	208	168	208	168
Clamping Unit	Clamping Force	KN	2000
	Opening Stroke	mm	480
	Mould Thickness	mm	200-500
	Space Between Tie-Bars	mm	570x570
	Hydraulic Ejection	KN	44.1
	Ejector Stroke	mm	130
	Die Postitioning Hole	mm	125
General	Total Power of Motor	KW	98		103
	Machine Dimension	m	6.6x1.8x2.3		6.4x1.8x2.3
	Machine Weight	T	11		11
	Nozzle Radius	mm	SR10		SR10

Application
APPLICATION FIELD:


HAIDA Full-electric widely used in food packaging,medical equipment,auto parts,communications,electronic appliances,instrumentation and other fields.

Auxiliary Machines
Company Profile
HAIDA MACHINERY established in the year 1991 at Ningbo, is one of THE TOP 10 CHINESE injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
