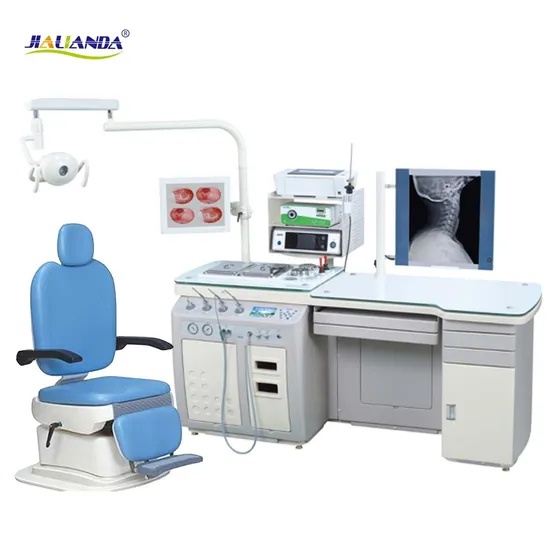

Medical Diagnosis Ent Equipment Unit Ent Examination Treatment Unit with Headlight

Product Description

Medical Diagnosis Ent Equipment Unit Ent Examination Treatment Unit with Headlight Product Description Feature--JLD-G60 Ear Nose Throat Treatment Unit.
1.Design: Have to be designed to consider with doctor's plot plan in order to reduce physical fatigue.
2.Treatment table can be turned and moved depends on user's need and it can improve the environment of treatments.
3.Marble top board:Adapted special marble avoid to soak the medicine in.
4.Endurance: Have to be adapted high quality endurance & noiseless suction motor. (less then 50dB)
5.Auto-Drainage System would be possible without suction bottle to sewage. (customized option)
6.Various Options: Unit must have a various options for each systems to cope with patients type rapidly.

Parameters
Power supply	110V/220V,50/60Hz
Power	800VA
Positive pressure	2.5Kg/cm2
Negative pressure	740mmHg(max)
Specification	1810*830*885mm
Desk material	marble glass table
Built-in LED cold light source	10 Watt.can connect to the fiber optic exam the otoscope, endoscope, optical fiber laryngoscope, lighting rods etc.
laryngoscope preheater	450W, 0-180 seconds, adjustable (Indirect laryngoscope,nasopharyngeal mirror can check if there is dirt things in nasal pharyngeal or laryngeal etc.)
Control system	With intelligence Power off function, enter into saving mode after one hour in situation of without any operation, press any key to recover. Automatic shutdown after 4 hours and 30 minutes.

Product Parameters Standard configuration.

Model No	STANDARD EQUIPMENT	QTY
JLD-G60	LED illuminating light	1
	Spray gun(unbent 2 & bend 1)	1
	Suction gun	1
	Blowing gun	1
	Laryngoscope pre-heater	1
	Built-in LED light source	1
	Luxury thin film viewer	1
	Blow-off equipment system (with warning system)	1
	Instrument tray	2
	Cotton cup	2
	Medical bottle	4
	Built-in waste tank	1
	Built-in equipment recycle tank	1
	Doctor chair	1
	Vacuum pump	1
	Compressor	1

Options.

Model No	STANDARD EQUIPMENT	Qty
Medical camera	1 CCD	1
Cold light source	LED	1
Fiber cable	Length: 1.82m	1
LCD monitor	15 inch	1
Computer set	Computer (17 inch LCD display):1/piece Pinter:1/piece. Professional endoscope software: 1/set.	1
Rinsing system	Constant temperature: 37ºC	1
Otoscope	Φ4;90mm;0°	1
Sinuscope	Φ4;175mm;30°	1
Laryngoscope	Φ8;185mm;70°	1
Microscope	Observation unit: Straight binocular observation unit (LED,10W)Objective focal length: 4 objectives; F=200, F=250, F=300, F=400 (mm) Value on magnification changer hand-wheel: 3-step, 0.6X, 1X and 1.6X	1

Detailed Photos
Main Products
Packaging & Shipping
Company Profile Foshan Jialianda Medical Apparatus Co. Ltd. Established in 2012.It is a high-tech manufacturing enterprise specialized in the developing, production and marketing of ENT treatment units, electric patient chair, spare parts for ent unit, patient chair, and dental chair for more than 10 years.
Foshan Jialianda located in Foshan city of Guangdong province, the factory covers an area of 5000 square meters, acquires a number of skillful and dedicated workforce.
Our products covers the ENT workstation unit and ent patient chair.We supply endoscopy camera imaging system,including medical camera,cold light source,monitor,fiber cable and computer set(computer+printer+ent workstation endoscope software).Rigid and flexible endoscope,ear rinsing system and microscope and so on.
Spare parts for the ent unit, electrical patient chair,The ENT unit is made of iron frame, ABS plastic shell, durable, beautiful appearance, smart and safe, high function performance, convenient and practical. The patient chair, with PU cover and Leather cover for choice.
We also supply the accessories for dental chair,such as light arm,foot switch,pillow holder, oral lamp and so on.
Our company has Business license medical device registration certificate and production license.In addition,we also have CE and FSC.We're dedicated in offering reliable,high quality and value added medical products to our ultimate clients.
We have promised to all of our customers to make sure every ent unit, electric patient chair inspected before delivery. With good quality and after sell service, our goods were good sales all over the world more than 200 countries and areas.
Our business philosophy: Firmly believe that quality and service are the way to survive, collaborate and win-win with customers
Supporting all kinds of medical equipment in high quality with competitive price. Whether the hospital or clinic.Lowest cost of your medical devices with good service and high quality is our goal.We look forward to establish a long-term business relationship with you.
Our goal: To make the brand bigger and stronger, to solve the problems for our customers.
Our workshop
FAQ 1.What's the minimum order quantity (MOQ) of your products?
The MOQ is 1/pc.
2.Why should you buy from us not from other suppliers?
-We're a manufacturer of ent workstation unit and patient chair,we're professional to solve problem of product.
-CE and FSC certificates.
-Warranty 1 year.
3.Can yu provide OEM service?
Yes.We support OEM,ODM customization conditions.
4.What's your delivery time?
It's according to the quantity.generally it's 3-7 days after sending the payment.
5.How about the after-sale service?
Generally we offer online technical support,installation videos to support the clients.
We can change new accessories to clients in the warranty period,clients must prove the product is damaged by nature.
