Customize Economical DC Gear Motor with 2-Stage High Ratio Planet Gearbox

Product Description

Customize Economical DC Gear Motor with 2-Stage High Ratio Planet GearboxProduct Description
Note:
The specifications can be designed according to the customer's requirements!
Main Parameter

Torque	10 N.m ~20N.m customize
Speed:	14 rpm ~ 100rpm customize
Estimated mechanical power	10W ~20W customize
Maximum average voltage after PWM:	10V~24V DC
Maximum average current available:	3.0 A ~ 6.0A
Available current profile	For the start of the motor the current can go up to 20A maxi during 100ms
EMC standard	IEC 61000-4-2

Structure Options
1) Brushed DC Motor + Gearbox
2) Brushed DC Motor + Gearbox + Brake
3) Brushed DC Motor + Irreversible gearbox
By irreversible we mean that the gearmotor can work as a brake, that needs the cogging of the motor with a high gear ratio can perform this function.
Reducer Structure Highlights
Only two stages but with Large Ratio over 400:1, each one composed by three planet gears, one planetary carrier, one sun gear and one ring gear. First stage is different from second stage. The planet gear of second stage is shared with two ring gear. One ring gear can rotate. On each side of the gearbox, two flanges are screwed in the main ring gear.
Application
a roller shutter application (home automation) need a gear motor with high speed ratio over 400:1. This gearmotor is assembled in a tube to be tubular motor and its output shaft is directly connected to a wheel driving a roller shutter
Material specification
To be cost-effective planetary gear motor
- First stage : High-precision and high-strength powder metallurgy gears or plastic gears
- Second stage: Metal gears
Cables
The gearmotor has 2 cables or with a connector.
- Cable length: Customized
- Connector: Customized, such as MOLEX, JST, AMP or others

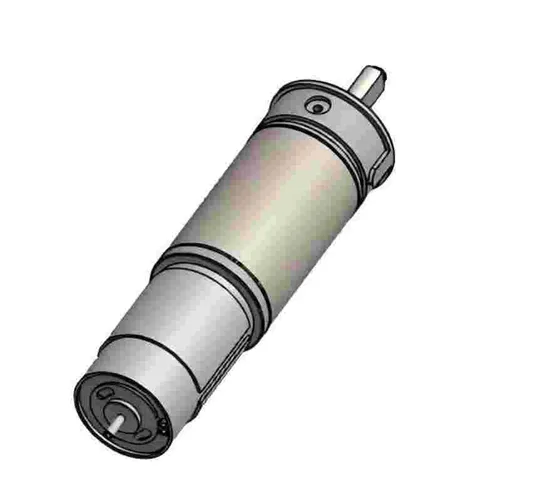

To avoid collisions with the tube, we use the wires to come from the bottom of the motor, not the sides. Hereafter, two examples of shapes:
Temperature environment
- Operational temperature range: -20°C / +70°C
- Storage temperature range: -30°C / +70°C
