Heavy 3 Axis Metal Mold CNC Vertical Benchtop Tool Milling Machine Center 850
Basic Info.
Model NO.
VMC850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt40
Spindle Motor
7.5/11kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
650kg
Name
Mold Cutting CNC Vertical Machining Center
X/Y/Z Speed
36/36/36 M/Min
Tool Alignment
Auto Tool Checking
Working Table
1000*500
Precision
+-0.008mm
Repeat Precision
+-0.005mm
Power
5.5kw 380V 3 Phase
Spindle Speed
12000 Rpm
Max Working Speed
6m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
4 Axis CNC Machine
Transport Package
Sea Worthy Plywood Case
Specification
2700*2900*2850
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8457101000
Production Capacity
2000PCS/Year
Product Description
4 Axis Machining Center VMC850 Cnc Vertical Machining Center TaiWan Cnc Milling Machine For SaleProduct Description

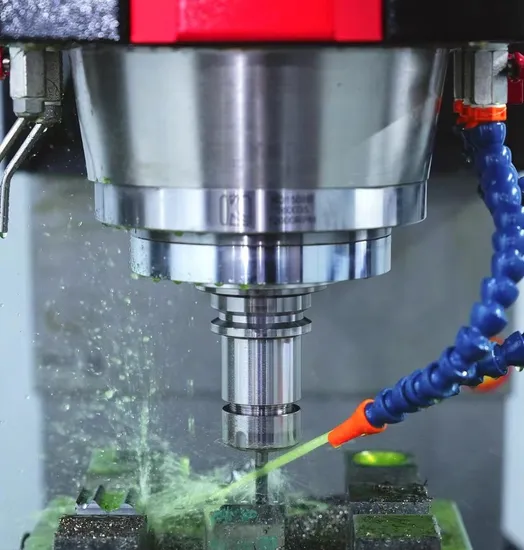

The fixed-column vertical machining center machine tool adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, tapping, etc. Used in auto parts, valves, construction machinery, T equipment, optical equipment, medical equipment and aerospace industries
Product Paramenters
| Item | unit | VMC-850 | VMC-866 | VMC-1165 | VMC-1275 | VMC-1675 |
| Journey | ||||||
| Three-axis travel (X/Y/Z) | mm | 850/540/520 | 860/600/600 | 1100/650/600 | 1200/750/700 | 1600/750/550 |
| Distance from spindle centerline to column guide surface | mm | 570 | 650 | 745 | 825 | 766 |
| Distance from spindle nose to work table | mm | 125-645 | 125-725 | 125-725 | 150-850 | 130-680 |
| Workbench | ||||||
| Table size (length X width) | mm | 1000X500 | 1000X550 | 1200X600 | 1300X700 | 1700X650 |
| Maximum load | kg | 550 | 650 | 800 | 1200 | 500 |
| Number of T-slots X Slot Width X Spacing | 5X18X100 | 5X18X100 | 51X8X110 | 51X8X150 | 5/14/130 | |
| Spindle | ||||||
| Spindle speed | rpm | 12000 | 12000 | 12000 | 12000 | 12000 |
| Spindle taper hole | BT40 | BT40 | BT40 | BT40 | BT40 | |
| Spindle motor power | kw | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 5.5/7.5 |
| Speed | ||||||
| Rapid traverse speed (X/Y/Z axis) | m/min | 48/48/48 | 36/36/36 | 30/30/30 | 30/30/24 | 30/36/48 |
| Cutting feed rate | m/min | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 | 10/10/10 |
| Tool magazine | ||||||
| Number of tools | T | 24 | 24 | 24 | 24 | 24 |
| Tool diameter/length/weight | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | Ф75mm/300mm/7kg | |
| The maximum diameter of the tool (full knife / adjacent empty knife) | mm | 75/150 | 75/150 | 75/150 | 75/150 | 75/150 |
| Machine tool accuracy | ||||||
| Positioning accuracy (X/Y/Z) | mm | 0.008 | 0.008 | 0.01 | 0.01 | 0.012 |
| Repeated positioning accuracy (X/Y/Z) | mm | 0.005 | 0.005 | 0.006 | 0.006 | 0.008 |
| Other | ||||||
| Air source/air pressure | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | 280L/min6-8bar | |
| Total capacity of machine tools | KVA | 20 | 20 | 25 | 35 | 20 |
| Tank volume | L | 400 | 400 | 420 | 260 | 250 |
| Machine tool dimensions (X/Y/Z) | mm | 2500X2700X2700 | 2700X2900X2850 | 3000/3100/2880 | 4450X3460X3400 | 4000X3400X3000 |
| Machine Weight (Approx.) | kg | 4900 | 5300 | 6700 | 8200 | 6300 |
