Sawdust/Wood Sawdust Pellet Mill Wood with 1-10t/H Production Capacity Price
| US$26,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MZLH320 MZLH350 MZLH420 MZLH508 MZLH678 MZLH768
Automatic Grade
Semiautomatic
Controlling Mode
Electrical Cabinet
Energy Saving
Energy Saving
Certification
CE
Warranty
1 Year
Customized
Non-Customized
Condition
New
Color
Blue
After-sales Service
Technical Consultant, Guide, Installation&Testing
OEM
Logo
Wood Pellets Diameter
6-8mm
Capacity
0.5-30th
Bearings
NSK
Raw Materials
Wood, Log, Coffee Grounds, Sawdust, Peanut Shell,
Transport Package
Wooden Box or Iron Frame
Specification
2800*1150*1730
Trademark
IKLAY
Origin
China
HS Code
843880
Production Capacity
1000pieces/ Year
Product Description
Sawdust/wood sawdust pellet mill wood with 1-10t/h capacity/ production capacity/ output/ productivity price1. Technical Parameter
| Model | Constituent part | Power | Pellet size | Capacity | Weight | Dimension |
| (KW) | (mm) | (Wood Sawdust ,Biomass) | (KG) | (mm) | ||
| MZLH320 | Screw Feeder | 1.1KW | 4-12mm | 0.3-0.4T/H | 1500KG | 2200*900*1300 |
| Force Feeder | 0.55KW | |||||
| Pellet machine | 37KW | |||||
| MZLH350 | Screw Feeder | 1.1KW | 4-12mm | 0.5-0.6T/H | 2200KG | 2500*1100*1600 |
| Force Feeder | 0.55KW | |||||
| Pellet machine | 55KW | |||||
| MZLH420 | Screw Feeder | 2.2KW | 4-12mm | 0.8- 1.2T/H | 3200KG | 2900*1150*2100 |
| Force Feeder | 1.5KW | |||||
| Pellet machine | 90/110KW | |||||
| MZLH508 | Screw Feeder | 3KW | 4-12mm | 1.5-2.0T/H | 4500KG | 3000*1260*2150 |
| Force Feeder | 1.5KW | |||||
| Pellet machine | 110/132KW | |||||
| MZLH678 | Screw Feeder | 3KW | 4-12mm | 2.0-2.5T/H | 5800KG | 3300*1450*2200 |
| Force Feeder | 2.2KW | |||||
| Pellet machine | 160/200KW | |||||
| MZLH768 | Screw Feeder | 3KW | 4-12mm | 2.5-3.5T/H | 6500KG | 3300*1550*2200 |
| Force Feeder | 2.2KW | |||||
| Pellet machine | 200/220KW |
2. Features 2.1. Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.
2.2. The drive part of the machine(including motor)optimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noise.
2.3. Adopts the frequency -conversion speed ,regulating control to guarantee quality pellet feed.
2.4. Main spare parts, such as ring dies& rollers etc. are produced strictly according to high quality standard. Ring dies are produced by automatic CNC gun drill machine&coutersinking machine, heat treatment by vacuum furnace, with long service life and making good feeds.
2.5. The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.

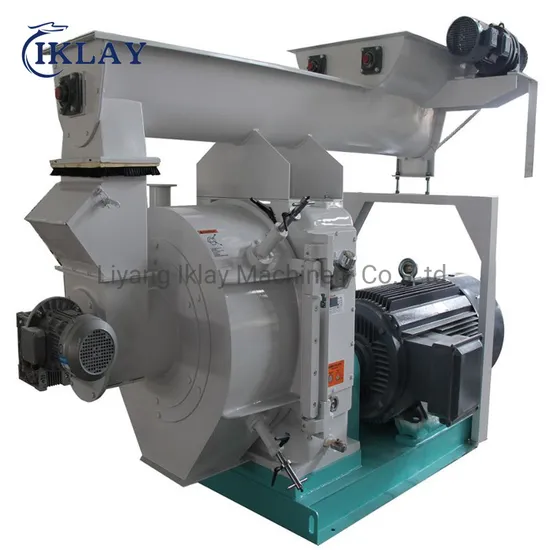

3. Photos of wood pellet mills/ wood pellet line
