New Type Retail Shop POS System Barcode Scanner Module

Product Description

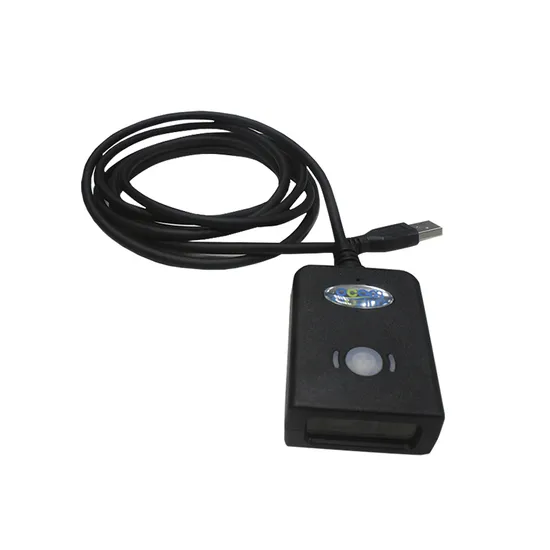

F4100 Mini-Scan Fixed-Mount Scanner

Applications:
Healthcare, Mobile coupon or ticketing (event, airline, cinema, etc), Pharmacy, Patrol Vehicles, Retail, Lottery, Banking, etc.

Physical Characteristics
Dimensions:	70mmX23mmX50mm(LxHxD)
Weight:	150g
Voltage and Current:	5 VDC +/-10% @ 400 mA
Performance Characteristics
Image (Pixels):	640 pixels (H)x 480 pixels (V)
Light Source:	Aiming: 617 nm LED; illumination: 6500K LED
Field of View:	40° (H) x 26° (V)
Roll / Pitch / Yaw:	360°, ±65°, ±60°
Print Contrast:	25% minimum reflective difference

Symbology Decode Capability
1-D:	UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2-D:	PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances:	up to 25 in. (63.5 cm) per second
Interfaces Supported:	USB

FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal.


3. Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.


4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com.

5. Shipment
We accept all kinds of shipping ways including: express, air, sea, truck, or pick up by customers personally.


Why You Choose OCOM?
Leading One-Stop Supplier for POS and Auto-ID Related Products;
11 Years OEM/ODM Experience;
Qualified by Global Fortune 500 Companies;
Tier 1 customers including Unilever, O2, Star ...
2300+ Customers Cover 159 Countries;
Top 1 Level Trade Assurance upto 399,000.00usd 100% protect your money;
ISO9001, FCC, CE , Rohs, Soncap, POA, BIS Certificates ;
12+1 months warranty;
Shortlisted in "China Best Employer";
Belief: Integrity Based, Strive for Excellence, Win-win Cooperation.
