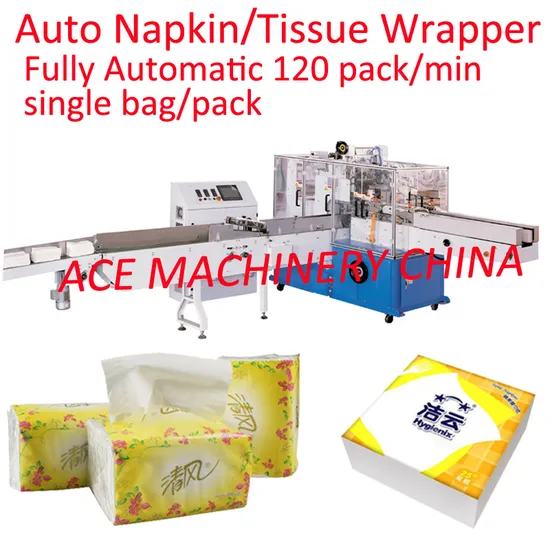

Fully Automatic Facial Tissue Paper Packing Machine for Napkin

Product Description

Fully Automatic Facial Tissue Paper Packing Machine for napkin
Application of this facial tissue paper packing machine: This tissue paper packing machine can be used to full automatically feed the tissue paper or napkins and seal the soft nylon bag by the. The packing machine can be connected to the log saw to form an automatic production line, saving much laboring cost and increase the production efficiency. The whole machine adopts stepless frequency conversion controlling, touching screen and PLC. Main motor Controlled by timing Frequency conversion; With touch screen for data setting. Equipped with automatic lubrication system. You can set the machine lubrication interval and lubrication time. For example, you can set it to lubricate the machine for about 1s every 30 minutes. Magic eye to check and control the material and packing film system; Equipped with automatic coding system to automatically print the manufacture dates on each package of the tissues. Equipped with perforating system to make perforated dotted lines on each package of tissues so that the customers can easily open the bag and take the tissues.
Application
This ACE-FSP Automatic High Speed Facial Tissue Packing Machine 80 Pack / Min is mainly used to automatically pack facial tissue papers, paper napkins, interfold paper towels etc. The mainly function of this machine is to manufacture customized soft packing facial tissue, nylon packing tissue paper, interfolded napkins etc. It can run at very high speed up to 280 pack per minute.
Advantage:
1 Pack speed 80 pack / min
2 Full Automatic
3 Stable and high speed
4 Easy operation
5 Easy maintenance.
Quick details:
1 Automatic
2 High speed
3 can pack both facial tissue and napkins
4 Use film roll
5 Can be connected to log saw.
Technical parameter:

Packing speed	90 bag/min
Tissue bag size	L100-200mm Other sizes to be specified. W100-140mm H30-100mm.
Packing material:	CPP with thickness 40-45 microns. PE also workable
Sealing type:	hot sealing and envelope type.
Packing film size	MAXφ300mm,width 400-600mm,thickness 40 - 45 microns.
Working noise:	≤78db
air pressure:	0.5Mpa(buyer supplier)
Power:	5.4Kw. Heating power:3.6Kw. 3phase AC380V 50HZ. Or 220v 60hz
Machine size:	L3680 x W5885 x H1925mm
Machine weight:	3500kg

Below photos of China fully automatic Automatic jumbo roll toilet paper machine with steel to rubber embossing with point to point lamination. Detailed Photos

toilet kitchen towel machine
