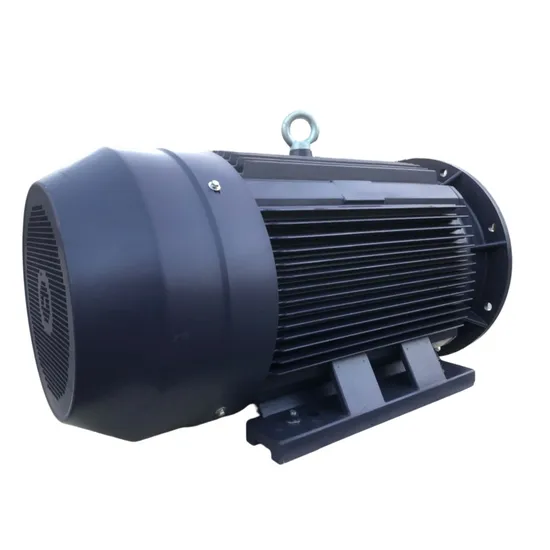

Electrical Motor for Sale Ie3 Three Phase Electric Premium Efficiency Motor AC Motor for Water Pump
| US$97.00-4,219.00 | 6 SET (MOQ) |
Basic Info.
Model NO.
YE-L
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Protection Type
Number of Poles
2.4.6.8.10.12
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Brand
Milestone
Item
Three Phase Asynchronous Motor
Phase
Three Phase
Voltage
380/400V/415V/660V/Customized
Temperature
- 15~40 Degree
Rated Output
0.75-315kw(1-425HP)
Rated Frequency
50Hz(60Hz Available)
Duty
S1
Cooling Method
IC411
Protection Feature
IP55/IP54
Insulation Class
F Class
Working Condition
Not Exceeding 1000m Above Sea Level
Transport Package
Wooden Case
Specification
According Frame Size
Trademark
Milestone
Origin
China
HS Code
8501520000
Production Capacity
200, 000 Sets/Annual Output
Packaging & Delivery
Package Size
95.00cm * 65.00cm * 67.00cm
Package Gross Weight
392.000kg
Product Description
Product DescriptionThree Phase Asynchronous motor is the AC motors, the modular for three phase motor offers millions of possible drive combinations.
For the high efficiency electric motor, we have YE3, YE4, YE5 series, from 0.75kW to 315kW. For different voltage, frequency and different power, we can do the customized.
Product Description
| MOTOR TYPE | Asynchronous motor, YE3, YE4, YE5. |
| STRUCTURE | Iron Cast or Aluminum Housing, Customized. |
| PROTECTION CLASS | IP54, IP55. |
| INSULATION CLASS | Class F. |
| VOLTAGE | 380V, 400V, 440V, 660V, Customized. |
| FREQUENCY | 50Hz(60Hz Available). |
| EFFICIENCY | IE3, IE4, IE5, |
| OUTPUT POWER | 0.75kW~315kW. |
| PHASE | Three Phase. |
| POLE | 2pole, 4pole, 6pole, 8pole, 10pole. |
| COOLING METHOD | IC 411/Customized. |
| DUTY | S1 (24Hour continuous working). |
| AMBIENT TEMPRETURE | -15°C≤ 0 ≤ 40°C. |
| ALTITUDE | Not exceeding 1000m above sea level |
| MOUNTING TYPE | B3,B5,B35, V1, V3,Customized. |
| STANDARD | IEC International Standard, China CCC, ISO 9001, CE. |
| PACKAGE | Carton or Wooden Case, well protection, easy loading and delivery. |
| APPLICATION | Water Pump, Assembly line, Air Compressor, Packing and Food Machinery, Mill Machinery, fan, and other equipment. |
| WARRANTY | 1 year except for the wear parts. |
| DELIVERY TIME | 10-30 working days. |
