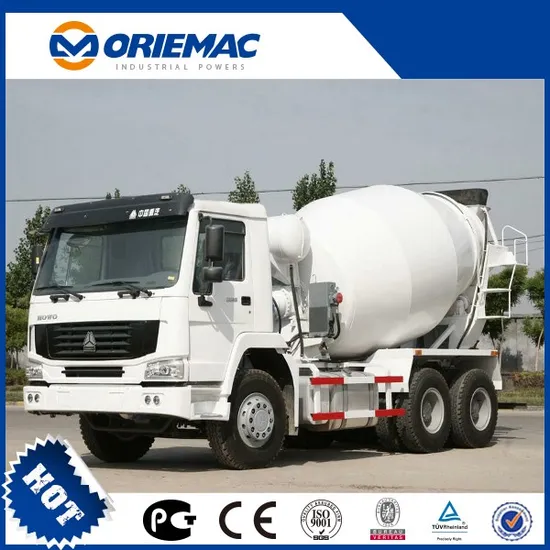

9cbm Drum Concrete Mixer Truck with Sinotruk HOWO 6X4 Chassis 336HP Truck for Sale
Basic Info.
Model NO.
ZZ1257N
Type
Concrete Mixer
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Productivity
>3m3/Min
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Air Condition
Yes
Drive Position
Left Hand/Right Hand
Rated Power
336HP
Wheelbase
4025+1350mm
Tire Specifications
12.00r20, Radial Tire
Transport Package
Roro/Bulk
Specification
10500x2500x3995mm
Trademark
ORIEMAC
Origin
China
HS Code
8705400000
Production Capacity
100 Units/Month
Product Description
Product Description9CBM Drum Concrete Mixer Truck with SINOTRUK HOWO 6x4 Chassis 336HP Truck for Sale
Driving Type:4x2 / 6x4 / 8x4
Horse Power:290HP / 336HP / 371HP
Transmission:HW19710, 10F & 2R
Mixer Body Volume:6CBM / 8CBM / 10CBM / 12CBM / 14CBM / 16CBM
Product Parameters
| Chassis Model | ZZ1257N4641W |
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
| Engine | Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine model: WD615.69, Euro 2, 336 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | Z/F power steering, modol Z/F8118, hydraulic steering with power assitance |
| Front Axle | HF9,1x9000 KGS Steering with doubleT-cross section beam |
| Rear Axle | HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. Ratio:4.42 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 315/80R22.5, tubless tires with one spare tire |
| Fuel Tank | 400L |
| Mixer Body | Volume: 10 CBM; Mixer Pump: Eton (USA Brand); Motor: Eton (USA Brand); Reducer: Bonfiglioli (Italy Brand); |
| Overall Dimension | 10450*2550*3950mm |
