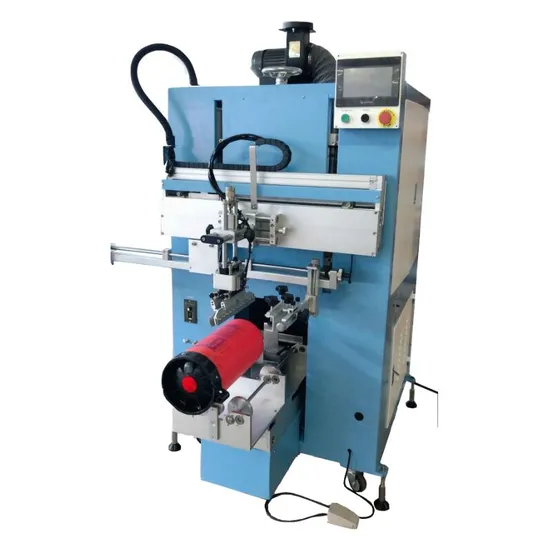

Automatic Servo Cylinder Screen Printing Machine with UV Drying System

Product Description

Automatic servo cylinder screen printing machine with UV drying system 1. Product Description Application area:
This machine can be used for long cylindrical printing, such as pump, water gun, water cannon, fire hydrant, crutches, ceremonial scepter, baton, fishing rod, column sound, barrel, barrel, forced gun, steel Cannon, fire extinguisher, oxygen cylinder, diving tube, ice bucket, beer keg, wine bottle, furniture, crafts, 3D human bones, medical supplies
Main performance
From screen printing to UV drying, manual feeding, automatic printing, automatic drying, automatic shift to the origin, can be color-register, multi-color printing, manual unloading, printing speed adjustable, 1000 times / hour.
Automatic screen printing UV ink, after the printing, the fixture automatically retracts to drying area, the track returns to UV drying, the middle shutter will block the UV light, after the drying is completed, the track will return to the silk screen position, the can take off the products by hand.

1.	Max printing diameter: Φ180MM
2	Max printing area: 270x460MM
3	Printing Speed: 1000 PCS/H
4	(United Kingdom)UV lamp power:6KW
5	uv curing size of workpiece: Cylinder products:270X460mm
6	Power supply:220V/50Hz, 110V/60Hz
7	Max product gradient: <14o
8	Machine size: 1350*1250*1900mm
9	Gross weight: 380 KG Package size:L*W*H 1550*1400*2200mm=1.314cbm
Warranty	For all our machines, we provide one-year warranty.lifelong maintenance Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.
