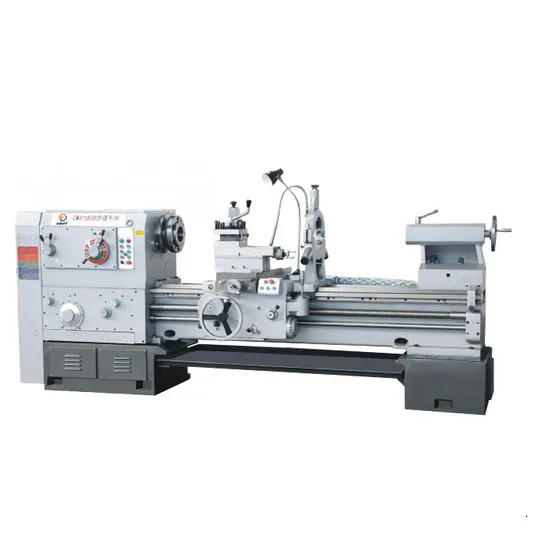

CW62100 Heavy Duty Horizontal Metal Lathe Machine for metal threading
Basic Info.
Model NO.
CW62100 CW62100A
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
105mm
Max. Swing Over Bed
1000/1200mm
Distance Between Centers
850-11850mm
Machine
Lathe
Voltage
110V, 220V, 380V
Clour
Customer Appoint
Package Style
Fumigated Poly-Wood Case
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
20 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 117.00cm * 125.00cm
Package Gross Weight
4650.000kg
Product Description
FeatureThis heavy duty horizontal face lathe series include : CW6163B,CW6180B,CW6280B, CW6110B.This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .
Main specification :
| MODEL | CW6163 | CW6180(A) | CW61100(A) | CW61120(A) | |
| CW6263 | CW6280(A) | CW62100(A) | CW62120(A) | ||
| CAPACITY | Max.swing over bed | Φ630mm(24-3/4") | Φ800mm(31-1/2") | Φ1000mm(39") | Φ1200mm(47-1/4") |
| Max.swing over gap | Φ830mm(32-3/4") | Φ1000mm(39") | Φ1200mm(47-1/4") | Φ1400mm(55") | |
| Max.swing over cross slide | Φ345mm(13-1/2") | Φ480mm(18-3/4") | Φ680mm(26-3/4") | Φ680mm(26-3/4") | |
| Center distance | 850/1350/1850/2850/3850/4850/5850/7850/9850/11850mm (33 1/2",53",73",151 5/8",191",230 3/8",309",387 3/4",466 1/2") | ||||
| Width of bed | 600mm(23 1/2") | ||||
| HEAD STOCK | Spindle hole | Φ105mm(4 1/4") (Φ130mm(4 1/4"),available for CW6180) | |||
| Spindle taper | Φ120mm(4 3/4") taper 1:20 | ||||
| Spindle speeds | 0.75-1000r/min | 5.5-730r/min | |||
| GEAR BOX-THREAD&FEEDS | Metric threads mm | 1-240mm (52) | |||
| Inch threads TPI | 1-14 (26) | ||||
| Module threads mm | 0.5-120mm (53) | ||||
| Diametral threads DP | 1-28 (24) | ||||
| Longitudinal feeds range | 0.1-24.3mm/r | ||||
| Cross feed range | 0.05-12.15mm/r | ||||
| Rapid feed:long/cross | 4000mm/min,2000mm/min | ||||
| TOOL-POST | Tool section | 32mm×32mm(1-1/4"x1-1/4") | |||
| CARRIAGE | Cross slide travel | 370mm(14-1/2") | 430mm(17") | ||
| Compound rest travel | 200mm(7 3/4")(travel for A type:170mm(6 2/3")) | ||||
| TAILSTOCK | Sleeve diameter | 100mm(3-3/4") | 120mm(4-3/4") | ||
| Sleeve taper | Morse 6 | ||||
| Sleeve travel | 240mm(9 1/2") | ||||
| STEADY REST | Steady rest | Φ20-200mm(3/4"-7 3/4") | |||
| Follow rest | Φ20-135mm(3/4"-5 1/4") | ||||
| MOTOR | Main motor | 11kw(15kw) 15HP(20HP) | |||
| Rapid feed motor | 1.1kw (1.5HP) | ||||
| N.W | kgs | 4600/5000/5200/5800/6400/7000/7900/9000/104000/11700kgs | |||
| OVERAL SIZE | Length | 3000/3500/4000/5000/6000Φ7000/8000/10000/12000/14000mm | |||
| Width | 1170mm | ||||
| Height | 1250mm | ||||
Standard Accessoires
4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual
Accuracy test report Schneider Electrical part
