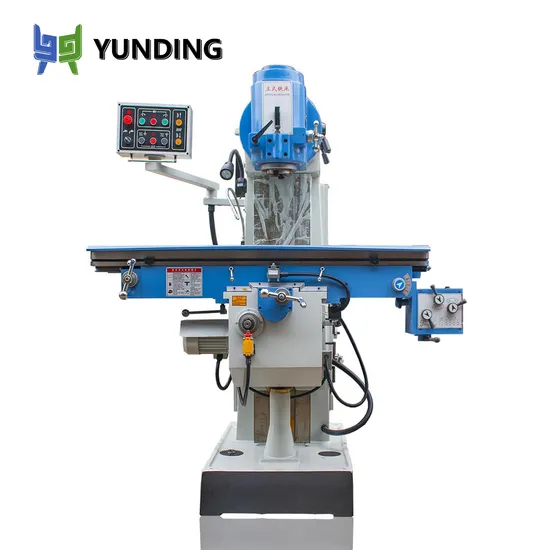

Universal Manual Lifting Table Machine Tool X5036 Metal Vertical Milling Machine

Product Description

Product Description
Universal Manual Lifting Table Machine Tool X5036 Metal Vertical Milling Machine
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Main technical parameters	Specifications	X5036A	X5036B	X5036C
	Spindle taper	7:24 ISO50	7:24 ISO50	7:24 ISO50
	Distance between spindle nose and table (mm)	80-440	70-450	70-450
	Distance between spindle hole center and column surface	320	360	360
	Spindle speed (r/min)	60-1700 (12steps)	60-1700 (12steps)	60-1800 (12steps)
	Rotation angle of end milling head	±45°	±45°	±45°
	Table size (mm)	1250×360	1500×360	1600×360
	Table travel (X/Y/Z) (mm)	600/320/380	1000/320/380	1300/320/380
	Number/width/spacing of T-grooves in worktable (mm)	3/18/80	3/18/80	3/18/80
	Main motor (kw)	4	4	5.5
	Power of Maneuverable Feed Motor of Workbench (kw)	0.75	0.75	0.75
	Power of feed motor for lifting platform (kw)	1.1	1.1	1.1
	Cooling pump motor power (kw)	0.09	0.09	0.09
	Cooling pump flow rate (L/min)	25	25	25
	weight (kg)	2200	2230	2600
	overall dimension (mm)	1700×1680×1880	2220×1790×1980	2520×1890×2080

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
