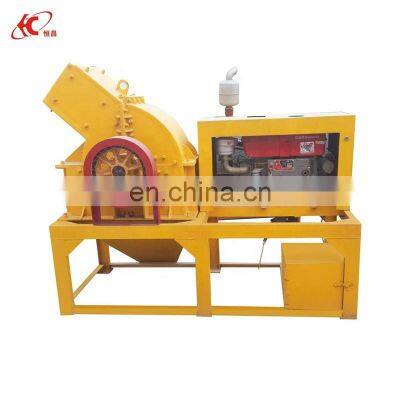

small Soil hammer crusher machine for low price

Product Description

Product Description
Product Description
Product Application Of small Soil hammer crusher machine for low price
It crushes things by the high speed collisions between the hammer and the materials and it is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, road building, and petroleum & chemical industries. it has the advantages of simple structure, large crushing ratio and high production efficiency. the grate gap of hammer crusher can be adjusted according to the user's different particle size requirements.

Model	Rotor size(mm)	Rotor speed(r/min)	Feeding size(mm)ze	Output size(mm)	Motor power(kw)	Capacity (t/h)	Weight (kg)
PC400×300	Φ400×300	1440	≤100	≤10	7.5	5-10	900
PC600×400	Φ600×400	960	≤100	≤15	18.5	10-20	1500
PC800×600	Φ800×600	970	≤120	≤15	45	18-24	2680
PC1000×800	Φ1000×800	990	≤200	≤15	110	30-50	5600
PC1000×1000	Φ1000×1000	990	≤200	≤15	132	30-60	8000
PC1200×1200	Φ1200×1200	750	≤250	≤20	180	90-110	19000

Main Features Of small Soil hammer crusher machine for low price
1. High production capacity, high crushing ratio.
2. Low power consumption, uniform particle size.
3. Simple structure, easy to operate.
4. Low investment cost, easy management.
5. The enhancement rotor is designed with finite element analysis technology.
6. High crushing ratio. The crushing ratio ranges from 10 to 25 or even higher to 50.
7. The AMC alloy hammerhead enjoys a service life increased by 50~150%.
8. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.
9. The military high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.
Certifications
Detailed Images
Name: Hammer
The hammer made of high-chromium alloy, high manganese steel, carbon steel.
Name:Rotor
Hammer crusher rotor is made of the spindle, disk, pin and hammer components. As hammer crusher work a key component of the work performance has a direct impact on the efficiency of the crusher.
Name: lining board
Liner is used to protect the cylinder, so that cylinder from the direct impact of grinding and friction materials and also can be used to adjust the different forms of liner motion state of grinding media to enhance the crushing effect of grinding material, help to improve mill grinding efficiency, increase production, reduce metal consumption.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	as the model of hammer crusher
Weight	0.9-19t
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Weight	as the model of hammer crusher
Weight	0.9-19t
Packaging Details	The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
