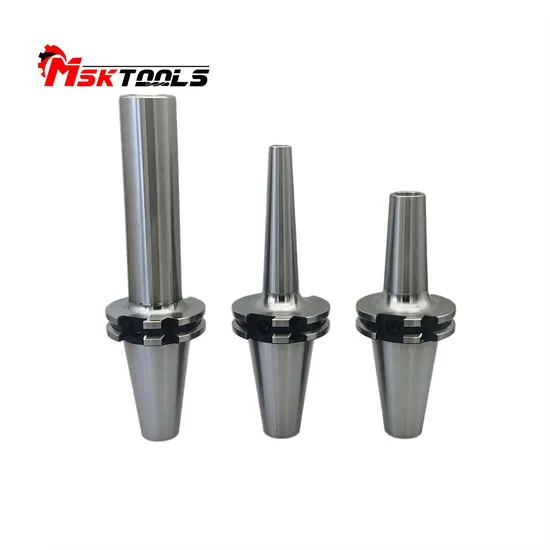

Clamping Tools Shrink Chucks Durable Shrink Fit Holder for Optimal Machining Efficiency

Product Description

Products Description
Features
1.Clamps cylindrical straight shank carbide and HSS tools requiring h6 accuracy in the shank section.
2.Made of special heat-resistant steel, suitable for induction heat shrink machines, shank concentricity ≤ 0.003mm, extended version with 4 screw holes for precision balancing.
3.Precision dynamically balanced to 30,000 rpm with a maximum unbalance of U < 1 gmm

Item number	model number	L	1	D	D1	d	M	Fig	Weight
DBT30SF4B 80	BT30-SF4B -80★	80	20	20	14	4	/	1	0.42
SF4B 120	-SF4B-120★	120		23.148				2	0.51
SF6B 80	-SF6B -80	80	36	27	21	6	M5x15	1	0.64
SF6B 120	-SF6B-120	120		30.148				2	0.59
SF8B 80	-SF8B -80	80		27		8	M6x15	1	0.56
SF8B 120	-SF8B -120	120		30.148				2	0.60
SF10B 80	-SF10B-80	80	41	30	24	10	M8x1	1	0.66
SF10B120	-SF10B-120	120		35.148				2	0.65
SF12B 80	-SF12B-80	80	47	30		12	M11x1	1	0.66
SF12B120	-SF12B-120	120		35.148				2	0.67
SF14B 80	-SF14B-80	80		34	27	14	M11x1	1	0.58
SF14B120	-SF14B-120	120		37.148				2	0.72
SF16B 80	SF16B-80	80	50	34		16		1	0.60
SF16B120	-SF16B-120	120		37.148				2	0.75
SF18B 80	-SF18B-80	80		42	33	18	M14x1	1	0.79
SF18B120	-SF18B-120	120						2	0.84
SF20B 80	-SF20B-80	80	52	42		20		1	0.73
SF20B120	-SF20B-120	120						2	0.85
DBT4OSF4B 90	BT40-SF4B -90★	90	20	20	14	4	/	1	1.01
SF4B 120	-SF4B-120★	120		23.148				2	1.07
SF4B 150	-SF4B-150★	150		26.296				2	1.13
SF6B 90	-SF6B -90	90	36	27	21	6	M5	1	1.21
SF6B 120	-SF6B-120	120		30.148				2	1.10
SF6B 150	-SF6B -150	150		33.296				2	1.17
SF8B 90	-SF8B -90	90		27		8	M6	1	1.21
SF8B 120	-SF8B-120	120		30.148				2	1.18
SF8B 150	-SF8B-150	150		33.296				2	1.25
SF10B 90	-SF10B-90	90	41	30	24	10	M8x1	1	1.20
SF10B120	-SF10B-120	120		35.148				2	1.21
SF10B150	-SF10B-150	150		38.296				2	1.27

Item number	model number	L	1	D	D1	d	M	Fig	Weight
DBT40SF12B 90	BT40-SF12B-90	90	47	30	24	12	M11x1	1	1.19
SF12B120	-SF12B-120	120		35.148				2	1.24
SF12B150	-SF12B-150	150		38.296					1.32
SF14B 90	-SF14B-90	90		34	27	14	M11x1	1	1.24
SF14B120	-SF14B-120	120		37.148				2	1.28
SF14B150	-SF14B-150	150		40.296					1.38
SF16B 90	-SF16B-90	90	50	34		16		1	1.21
SF16B120	-SF16B-120	120		37.148				2	1.30
SF16B150	-SF16B-150	150		40.296					1.42
SF18B 90	-SF18B -90	90		42	33	18	M14x1	1	1.40
SF18B120	-SF18B-120	120		-				2	1.19
SF18B150	-SF18B-150	150		48.296					1.57
SF20B 90	-SF20B-90	90	52	42		20		1	1.37
SF20B120	-SF20B-120	120		-				2	1.31
SF20B150	-SF20B-150	150		48.296					1.52
SF25 B90	-SF25B-90	90	58	52	44	25	M18x1	1	1.64
SF25B120	-SF25B-120	120		-				2	1.41
SF25B150	-SF25B-150	150		-					1.71
SF32B100	-SF32B-100	100							1.64
DBT50SF6B 100	BT50-SF6B-100	100	36	27	21	6	M5x15	1	3.92
SF6B 120	-SF6B -120	120		30.148				2	3.55
SF6B 150	-SF6B-150	150		33.296					3.69
SF6B 200	-SF6B-200	200		37.452					3.89
SF8B 100	-SF8B-100	100		27		8	M6x15	1	3.92
SF8B 120	-SF8B-120	120		30.148				2	3.69
SF8B 150	-SF8B -150	150		33.296					3.79
SF8B 200	-SF8B-200	200		37.452					4.02
SF10B100	-SF10B-100	100	41	30	24	10	M8x1	1	3.90
SF10B120	-SF10B-120	120		35.148				2	3.59
SF10B150	-SF10B-150	150		38.296					3.77
SF10B200	-SF10B-200	200		40.453					4.02
SF12B100	-SF12B-100	100	47	30		12	M11x1	1	3.94
SF12B120	-SF12B-120	120		35.148				2	3.73
SF12B150	-SF12B-150	150		38.296					3.82
SF12B200	-SF12B-200	200		40.453					4.07
SF14B100	-SF14B-100	100		34	27	14	M11x1	1	4.02
SF14B120	-SF14B-120	120		37.148				2	3.78
SF14B150	-SF14B-150	150		40.296					3.83
SF14B200	-SF14B-200	200		43.449					4.16
SF16B100	-SF16B-100	100	50	34		16		1	3.96
SF16B120	-SF16B-120	120		37.148				2	3.74
SF16B150	-SF16B-150	150		40.296					3.89
SF16B200	-SF16B-200	200		43.449					4.19
SF18B100	-SF18B-100	100		42	33	18	M14x1	1	4.12
SF18B120	-SF18B-120	120						2	3.79
SF18B150	-SF18B-150	150		48.296					3.97
SF18B200	-SF18B-200	200		51.035					4.30
SF20B100	-SF20B-100	100	52	42		20		1	4.06
SF20B120	-SF20B-120	120						2	3.78
SF20B150	-SF20B-150	150		48.296					3.94
SF20B200	-SF20B-200	200		51.035					4.22
SF25B100	-SF25B-100	100	58	52	44	25	M18x1	1	4.36
SF25B120	-SF25B-120	120						2	3.89
SF25B150	-SF25B-150	150							4.17
SF25B200	-SF25B-200	200		60.453					4.67
SF32B100	-SF32B-100	100	62	52		32		1	4.15
SF32B120	-SF32B-120	120						2	3.99
SF32B150	-SF32B-150	150							4.37
SF32B200	-SF32B-200	200		60.453					5.01
