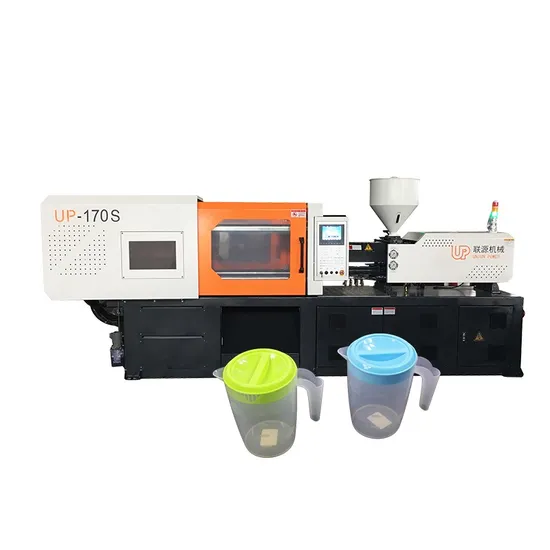

170 Ton High Speed Best Price Injection Moulding Machine for Jug

Product Description

Product Description
Our factory is located in Ningbo, near Shanghai. It is a professional manufacturer of injection molding machines, injection molds and auxiliary equipment. The range of injection molding machines is from 50 tons to 3000 tons, and the tensile resistance is from 40000 g. Machine family:
A) Standard injection molding
Machine
B) PVC injection molding machine;
c) PET injection molding machine;
D) Two-color ejector;
E) Fully hydraulic injection molding;
F) All-electric injection molding machine; Full injection

China servo injection molding machine.

A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer

B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine. C. code mold parameters: code mold hole, slot size.ce standard injection molding machine. D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided. E. Mold opening stroke and maximum opening distance.plastic injection machine

Technical Parameters	Model UP-170T
Injection Unit	A	B	C
Screw diameter (mm)	42	45	50
Shot Volume (cm3)	311	358	442
Injection weight (g)	373	429	506
injection pressure (Mpa)	174	152	123
Screw speed (rmp)	199
Clamping Unit
Clamping force (KN)	1700
Open stroke (mm)	440
Max Mold height (mm)	500
Min Mold height (mm)	180
Space between tie bars(mm)	470*470
Ejector force (KN)	46
Ejector stroke (mm)	140
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	15(18.2)
Heating power (KW)	9.3
Machine dimension (M)	4.8*1.4*1.9
Machine weight (T)	5
Oiltank cubage (L)	240

Note: Different machines, the quantity of free accessories is different
