Universal Grinder Machine M1450 High Precision Cylindrical Grinding Machine

Product Description

Universal Grinder Machine M1450 High Precision Cylindrical Grinding Machine
Product Description
Product main technical specifications :

Specifications		Units	M1450
General capacity	Distance between centers	mm	1500/2000/3000/4000 (3000. 4000)
	Center height	mm	270
	Dia. Ground(O.D)	mm	25-500
	Dia. Ground(I.D)	mm	30-200
	Max. length ground(O.D)	mm	1500/2000/3000/4000 (3000.4000)
	Max. length ground(I.D)	mm	320
	Max. weight of work piece	kg	1000 (2000)
Work head	Swiveling angle	°	+90°
	Center taper	MT	6
	Spindle speed	r/min	50HZ:20~224 Stepless
Wheel head	spindle speed	r/min	1330/665
	head rapid travel	mm	100
	max. travel	mm	370
	swiveling angle	°	-30°
	hand feed per rev	mm/rev	rough: 4 precision: 0.5
	hand feed per gra	mm/gra	rough: 0.02 precision: 0.0025
	Wheel size (ODxWxID)	mm	500*75*305
	Peripheral velocity	m/s	35/17.5
Internal Grinding device	Spindle speed	r/min	10000
	Wheel size (OD*W*ID)	mm	Max.: 175*32*32 Min.: 30*25*10
Table	Table hand feed per rev	mm/rev	5
	Max. swiveling angle of table (Clockwise)	°	3° (1500) 7° (2000/3000) 1° (4000) 2° (3000) 1° (4000)
	Max. swiveling angle of table (Anticlockwise °)	°	6° (1500) 5° (2000) 3° (3000) 2° (4000)
	Longitudinal speed range of table	m/min	0.1-3
Tailstock	Center taper	MT	6
	Quill travel	mm	70
Motor	Wheel head motor power	kw	5/7.5
	Internal grinding motor power	kw	1.5
	Workhead motor power	kw	4 (7.5)
Machine	Machine weight	kg	100000 (1500) 110000 (2000) 150000 (3000) 170000 (4000)
	Overall dimension(L * W * H)	mm	4560*2090*2100 (1500) 5460*2090*2100 (2000) 7460*2090*2100 (3000) 9460*2090*2100 (4000)

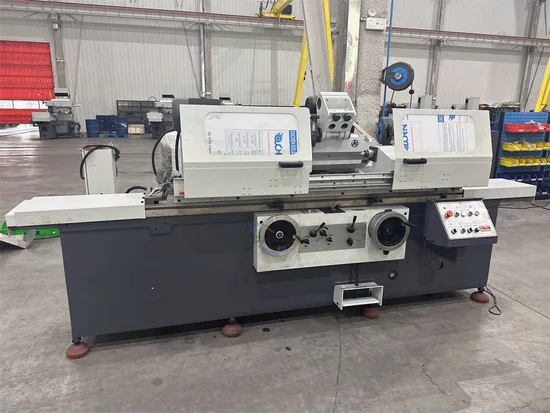

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
