50HP Farm, Mini, Crawler Tractor, Small Tractor, Rotary Cultivator
| US$4,500.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1gzl-125
Farming Policy
Paddy Field Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE, CNAS
Color
Red and Black
Warranty
1 Year
Rush Order
Support
Delivery Time
15-60 Days
Gauge
800
Net Weight
1050 Kg
Transport Package
Naked Packing
Specification
1050KG
Trademark
K-BOS
Origin
Deyang City, Sichuan Province
HS Code
8701300090
Production Capacity
3000
Product Description

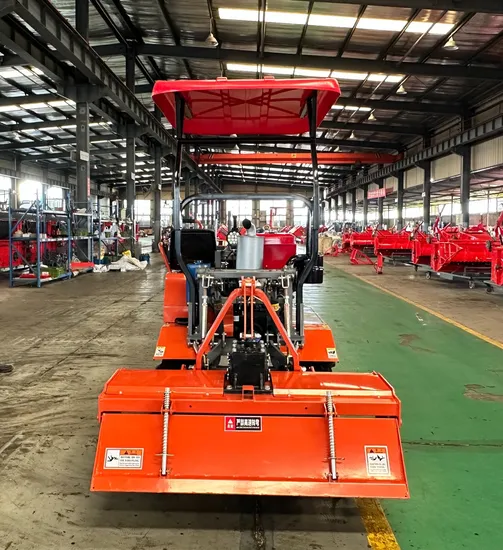

Product Description1GZL-125 CRAWLER TRACTOR/ROTARY CULTINATOR
Crawler walking★ HST one lever operating ★ hydraulic steering lift ★ Ground clearance 285mm,Guage 1000mm,Rubber track width 400★ Three-point Linkage,multi-functional match different farming implements to finish rotary tilling,ridging,furrowing works etc,★asy operation,low ground pressure, high efficiency.
------------------------------
SPECIFICATION
| Product Model | 1GZL-125 CRAWLER TRACTOR | |||||
| Overall Dimension Length×Width×Heights(mm) | 2900×1320×1450 | |||||
| Weight (kg) | 1050 | |||||
| Productivity of Operating Hours(hm²/h) | 0.25~0.35 | |||||
| Engine | Model | AM35NM | ||||
| Rated Power(kw/hp) | 24KW/35HP | |||||
| Engine Type | Water-Cooled,Single-Cylinder,Diesel Engine. | |||||
| Rated Rotation Speed (r/min) | 2200 | |||||
| Traveling System | Type of Gearbox | Mechanical Manual | ||||
| Rubber Track(mm) | 350x90x38 | |||||
| Gauge | 800 | |||||
| Minimum Ground Clearance (mm) | 295 | |||||
| Hydraulic Hitch System | Hydraulic Hitch Type | Semi-partition Hydraulic Hitch | ||||
| Rear Mounted Implements Type | Three-point Linkage | |||||
| Implements catogry | Categories 2 | |||||
| PTO Rotating Speed (r/min) | 580 | |||||
| Working Implement Rotary Tiller | Working Width(mm) | 1250 | ||||
| Type of Knife | IT195 | |||||
| Quantity of Knife | 28 | |||||
| Driving Type | Side Gear Driving | |||||
-------------------------------
Packaging & Shipping
-------------------------------
Working in Field:
