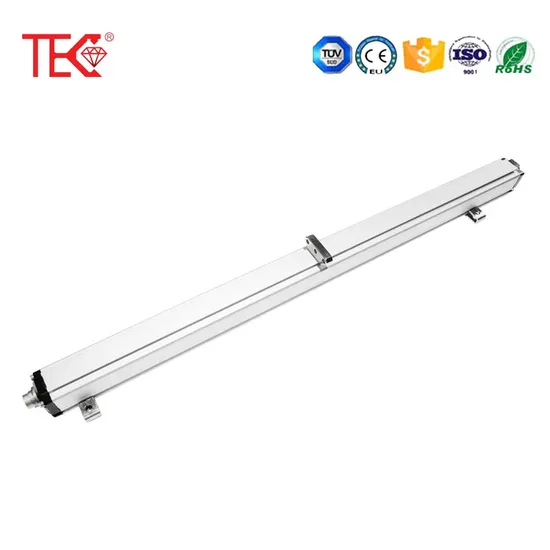

Magnetostrictive Displacement Transducer Magnetic Position Sensor Linear Displacement Sensor for Tire Industry
| US$450.00-1,150.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HP-M0100-C2-PB80-S1B1000-D2-CN
Movement
Linear Displacement
Production Process
SemiConductor Integrated
Material
Metal
Accuracy Grade
0.1μm
IP Rating
IP65
Certification
CE
Customized
Customized
Stroke Length
25~2500mm
Data Format
Binary or Gray Code
Resolution
1μm
Nonlinearity
<± 0.01% of Full Scale, Minimum; 50 μ M
Repetition Accuracy
<± 0.001% of Full Scale, Minimum ; 5 μ M
Hysteresis
<10µm
Temperature Coefficient
<15ppm/ºC
Magnet Velocity
Arbitrary
Protection Level
IP65
Operating Temperature
-40ºC ~ +85ºC
Outer Tube Pressure
35MPa (Continuous)/70MPa (Peak)
Input Voltage
+24VDC±20%
Operating Current
4 ~ 20mA or 0 ~ 2 0mA (Min/Max Load 0/500ÿ)
Polarity Protection
Maximum-30VDC
Overvoltage Protection
Maximum 36VDC
Transport Package
Paper Tube
Trademark
TEC Sensors
Origin
China
HS Code
90318090
Production Capacity
80000PCS/Year
Product Description
Product Parameters| Output: | SSI output |
| Measuring length: | 25~2500mm |
| Repeat accuracy: | <± 0.001% of full scale, minimum ± 5 μm |
| Non-linearity: | <± 0.01% of full scale, minimum ± 50 μm |
| Operating voltage Ub: | +24Vdc±20% |
| Ambient temperature: | -40ºC ~ +85ºC |
| Mechanical configuration: | Fastening M20 threads, Fastening M18 threads, Fastening 3/4" threads |
| Housing material: | Integral aluminum alloy |
| IP rating: | IP65 |
| Approval/Conformity: | CE |
This sensor is based on the principle of magnetostriction and achieves high-precision detection of object position and displacement by accurately measuring magnetic field changes. Its profiNet output function enables sensors to seamlessly integrate into industrial Ethernet networks, achieving high-speed and efficient communication with the upper control system, thereby improving the automation level and efficiency of the production process.
The HP integral profile structured sensor also has excellent anti-interference ability and temperature stability, ensuring highly accurate measurement results in various complex environments. Its sturdy and durable housing design and wide operating temperature range enable the sensor to operate stably for a long time in harsh industrial environments.
Installation Instructions
