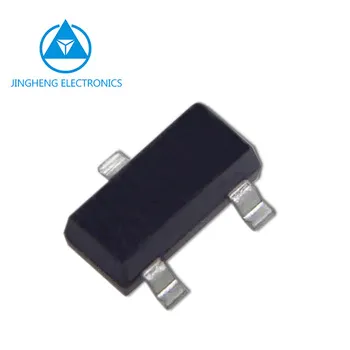

60V 230mA N-CHANNEL MOSFET 2N7002K WITH SOT-23 PACKAGE
| US$0.0072-0.009 | 3,000 Pieces (MOQ) |
Basic Info.
Model NO.
2N7002K
Certification
RoHS, ISO
Luminous Intensity
None Luminance
Color
None Luminance
Structure
N channel
Material
Silicon
VDSS (MAX)
60V
ID (MAX)
0.34A
Transport Package
Tape Reel
Specification
SMD type
Trademark
JF
Origin
China
HS Code
85411000
Production Capacity
10000000000piece/Year
Packaging & Delivery
Package Size
20.00cm * 40.00cm * 15.00cm
Package Gross Weight
8.000kg
Product Description
Product Description N-CHANNEL ENHANCEMENT MODE MOSFET 2N7002KElectronics Component
Part Number: 2N7002K
Major Parameter:
| Type | Channel | VDSS(V) (MAX) | ID(A) (MAX) | PD(W) (MAX) | VGS(V) (MAX) | VTH(V) | Rds(on)(Ω)@10V (Typ) | Rds(on)(Ω)@4.5V (Typ) | Rds(on)(Ω)@2.5V (Typ) | ESD protection for G-S(Y/N) | Outline |
| 2N7002 | N | 60 | 0.34 | 0.35 | ±20 | 1.0~2.5 | 1.2 | 1.3 | SOT-23 | ||
| 2N7002A | N | 60 | 0.34 | 0.35 | ±30 | 1.0~2.5 | 1.2 | 1.3 | |||
| 2N7002K | N | 60 | 0.34 | 0.35 | ±20 | 1.0~2.5 | 1.3 | 1.4 | Y |
Package: SOT-23
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Trench Power MV MOSFET technology · Voltage controlled small signal switch
· Low input Capacitance
· ESD Protected Up to 2.5KV(HBM) Application:
· Battery operated systems
· Solid state relays · Direct logic-level interface:TTL/CMOS
