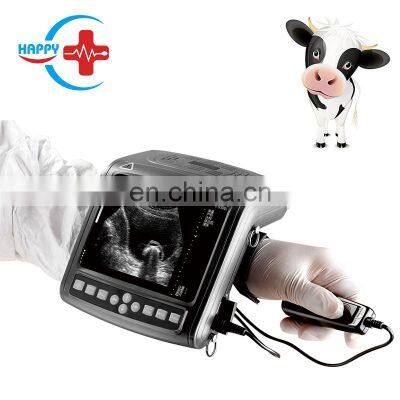

VET-A020V Livestock Digital Vet ultrasound scanner/Portable Cattle Ultrasound Machine

Product Description

Product Description
VET-A020V Livestock Digital Vet ultrasound scanner/Portable Cattle Ultrasound MachineProduct DescriptionFeatures for VET-A020V Livestock Digital Vet ultrasound scanner/Portable Cattle Ultrasound Machine: Wrist design: truely innovative.Smart and light : 5.7" high resolution color LCD , 1.1kg weight. No fan: Avoid cross-infection for virus.USB port: directly store image to U disk. Gridding calculate: quick measure by eye. Accessory: a lot of optional parts for customer different use habit. 2 pcs Internal li-battery: work for 5 hours. Technical Specification *Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system. *5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use Language: Chinese/English switchable.*Single probe socket, automatically identify the probe, support several optional probes. * Body mark: 1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.* Display mode:B,2B,4B ,B/M,M, total 5 kinds.* 8 kinds of Magnification, maximum display depth is 240mm.* Gain range:0~127dB* Dynamic range:27~90dB* Gray:256 *Cine loop:256 frames. * Puncture guiding function( 2 guiding lines, angel and position adjustable) *Probe model:electronic convex and linear *Elements of probe:80 *USB port support one-key storage image to USB and color laser printer directly print various image and reports. *Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station. *Net weight:1.1kg. *Main unit size: 155x180x80mm(length x width x height).*Intelligent TGC control: near-field and far-field adjustmen*Adjustable and intelligent focus. *Frame frequency:30 frames/second.Pseudo-color: 8 kinds (incl. B/W). *Permanent image storage: 100 frames. Measurement and analysis:General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc. Other measurement: Automatically calculate the Back fat and Lean percentage of swine . OBreport function Automatically save the last parameters, customer can directly use it on next time. lmage storage:100 frames permanent image storage, without loss when power off.USB port support one-key storage image to U disk Power supply:Battery: high-capacity lithium Battery( 2400MAh) . Two pcs battery can work than 5 hours. Power:AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz. Standard configuration: Main unit: 1 pc6.5MHz linear rectal probe : 1 pc Power adapter: 1 pc Internal battery : 2 pcsThe leather Case: 1 unitBase Charger, belt, bracket, shutter release: 1 pc for each. Optional configuration: Probe: 4.0Mhz multi-frequency convex rectal Probe 7.5MHz multi-frequency linear probe 6.5MHz multi-frequency micro-convexprobe 3.5MHz multi-frequency convex probe 6.5MHz multi-frequencytrans-vaginal probe goggles USB flash disk Thermal printer (P93W-Z) Battery(2400mAH) Mouse Black suitcase Introducer Pictures for VET-A020V Livestock Digital Vet ultrasound scanner/Portable Cattle Ultrasound Machine: Packaging & Shipping Company Information Clients and projects Our Services
