Voltage Regulator Type Fv on-Load Tap Changer

Product Description

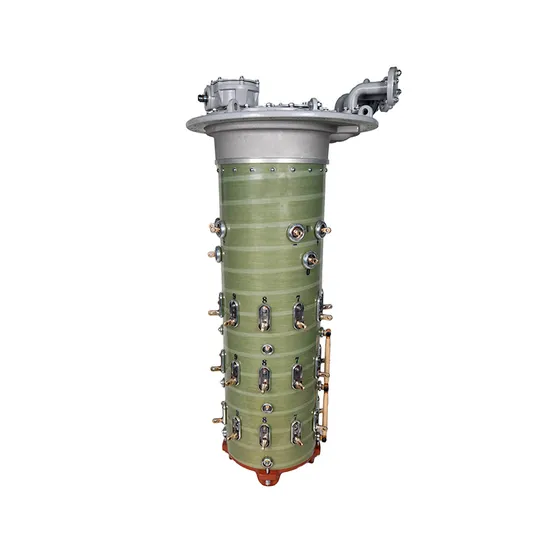

Product DescriptionFV series on-load tap changers are suitable for power transformers or industrial transformers with a rated voltage of 35 to 110 kV, a maximum rated through-current of three-phases 200A, 350A, 500A, single-phase 200A, 350A, 500A, 700A, power transformers or industrial transformers with a frequency of 50 to 60 Hz, to change the tap under load to regulate the voltage.
This on-load tap changer is suitable for power or industrial transformers with a rated voltage of 35 to 110 kV, a maximum rated through-current of 500 A or less, a frequency of 50 Hz to 60 Hz, a three-phase, Δ(D) or Y-connected neutral regulating connection to change the transformer connectors to change the transformer's output voltage to achieve a stable voltage at the output end within a specified range under load conditions; or to increase or decrease the output voltage according to the requirements of the load to achieve the purpose of adjusting the voltage on the line.Model Description
Product Parameters

Designation		FVI(III)200			FVI(III)350			FVI(III)500
Max. rated through-current Ir (A)		200			350			500
Phase		1	3	3	1	3	3	3	3
Connection Methods		-	Y	Δ	-	Y	Δ	Y	Δ
Withstand short-circuit capacity (kA)	Thermal stabilization (3s)	4			5			7
	Dynamic stabilization (peak)	10			12.5			17.5
Max. rated step voltage	10 contact	1500			1500			1500
	12 contact	1400			1400			1400
	14 contact	1000			1000			-
Rated step capacity (kVA)	10 contact	300			525			400~525*
	12 contact	280			420			325~420*
	14 contact	200			350			-
Number of tap positions (max.)		Linear modulation:14 Forward and reverse (thickness) modulation:27						Linear modulation:12 Forward and reverse (thickness) modulation:23
Ground isolation(kV)	Insulation grade	35						60
	Highest voltage for equipment	40.5						72.5
	Power frequency test voltage	85						140
	Impulse test voltage	200						350
Seal test	Working pressure	3×104Pa
	Test pressure	6×104Pa, No leakage for 24 hours
On-load tap changer weight (without oil)		100~140			120~150			190~200
With motorized mechanism		CDF2
Protecting relay		QJ4-25 Neutralized impact oil speed 1.0m/s±10%
