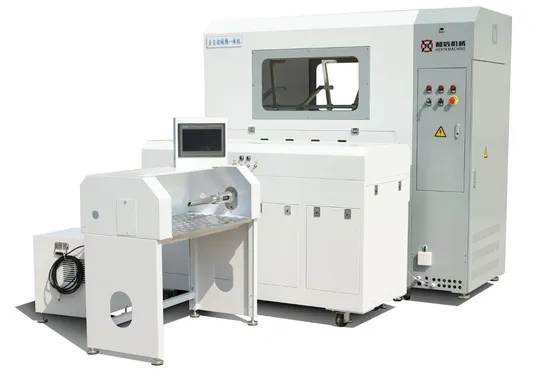

Automatic High Speed Automatic Duck Down and Cotton Filling Machine for Garment Factory
| US$3,000.00-15,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
RM1-6
Feature
Automatic Weighing
Filling Valve Head
Doubie-Head, Multi-Head
After-Sales Service
Technical Engineer Support
Filling Nozzle Size
16mm, 19mm, 25mm, 38mm
Filling Nozzle Number
1
Filling Material
0.5-30g(Down), 1-35g(Cotton)
Installation Size
4000*4000mm
Cycle Number
6
Accuracy
0.01g
Machine Weight
880kg
Power
4.5kw
Daily Workload
7000-18000 Times
Single Error
0-0.1g
Type
Weighing-Type Filling Machine
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Capacity Cup
Filling Principle
Vacuum
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Rotary
Packaging Material
Plastic
Warranty
1 Year
Material Type
Down and Fiber
Packaging
Film
Transport Package
Wooden Box
Specification
Installation size: 4000*4000mm
Trademark
Hexin
Origin
China
HS Code
8453800000
Production Capacity
100 Sets/Month
Product Description
One Head Six Scales Automatic Down and Cotton Filling Machine Product Parameters| Model | RM1-6 |
| Filling nozzle size(mm) | 16mm, 19mm, 25mm, 38mm |
| Filling material | Down, pearl cotton, silk cotton, wool silk |
| Single weighing range | 0.5-30g (down), 1-35g(cotton) |
| Single Error | 0-0.1g |
| Host Shape Size(mm) | 2000*1100*1900 |
| Weighing Box Shape Size(mm) | 1600*800*1300 |
| Installation Size(mm) | 4000*4000 |
| Filling port | 1 |
| Cycle number | 6 |
| Accuracy class | 0.01g |
| Machine weight | 880kg |
| Power | 4.5KW(AC220V) |
| Daily workload | 7000-18000 times |
| Automatic iron removal function | Support |
| More refunds and less supplements | More refunds and less supplements, accurate and saving down |
| Apportion big grams | Can fill a larger range |
| Fragment supplement function | One click immediate filling function after missed filling |
| Automatic down returning function | Change the gram weight and simplify the operation |
| Automatic constant humidity function | Automatically control the humidity of down inside the machine |
| USB data input | USB data input |
| Name | Brand and Origin |
| PLC | Delta/Xinje |
| Sensor | HBM(Germany) |
| Regulated power supply | MW(Taiwan) |
| Controller | Delixi |
| Pneumatic parts | AirTAC |
| Pressure Regulating Valve | Japan SMC/AirTAC |
| Touch Screen | MCGS |
