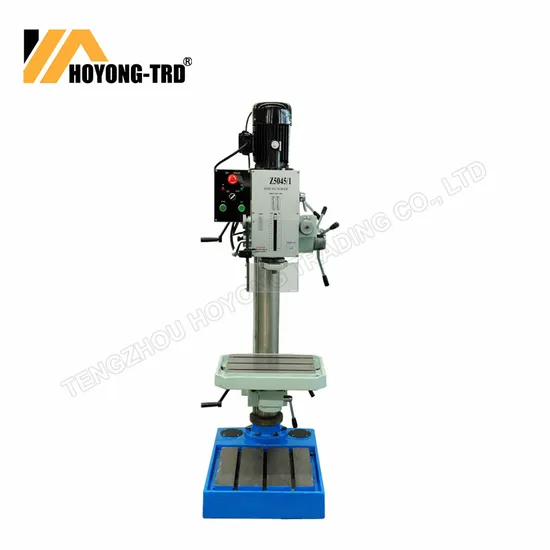

Vertcial Drilling Machinez Z5032/1 Z5040/1 Z5045/1
| US$2,500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5032/1 Z5040/1 Z5045/1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Driiling Capacity
32mm
Max. Taping Capacity
Mt3
Max.Spindel Travel
130mm
Spindel Speed
80-1250rpm
Column Diameter
290mm
Motor Power
0.75kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300
Product Description
VERTICAL DRILLING MACHINE FEATURES:
Drilling, milling and tapping
Head swivels 360 horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
SPECIFICATIONS:
| ITEM | Z5032/1 | Z5040/1 | Z5045/1 |
| Max.drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Step of spindle auto-feeding | 6 | 6 | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
| Max.distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max.travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
| Max.travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size of avaliability | 380×300mm | 380×300mm | 380×300mm |
| Swivel angle of table horizontally | 360° | 360° | 360° |
| Table leaned | ±45° | ±45° | ±45° |
| Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm |
| Motor power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| speed of motor | 1400 r.p.m | 1400 r.p.m | 1400 r.p.m |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 437kg/487kg | 442kg/492kg | 442kg/492kg |
| Packing size | 1850×750×1000mm | 1850×750×1000mm | 1850×750×1000mm |
