Electric EPS Compressor Recycling Into Briquettes

Product Description

The EPS compressor can shred and compact EPS polystyrene foam materials of big size and light weight into briquette of high density and small size.It is expensive to transport loose foam materials.Cause 95% of polystyrene beads are air,so it is nessesary to compact it and transport it.
We see foam waste scattered everywhere with small volume,we can drive a truck with the compactor on truck to go everywhere to collect and compact these foam waste. Machine Application
Foam can be recycled to make a number of items we use every day - from picture frames to baseboards and much more. For example, foam can be recycled into insulation to maximize your home's energy efficiency. It can also be turned back into packaging material to help protect fragile and breakable items.
Expanded polystyrene foam (EPS) can be recycled into general-purpose polystyrene to produce synthetic timber, coat hangers, cases for video cassettes, and more. Machine Advantage

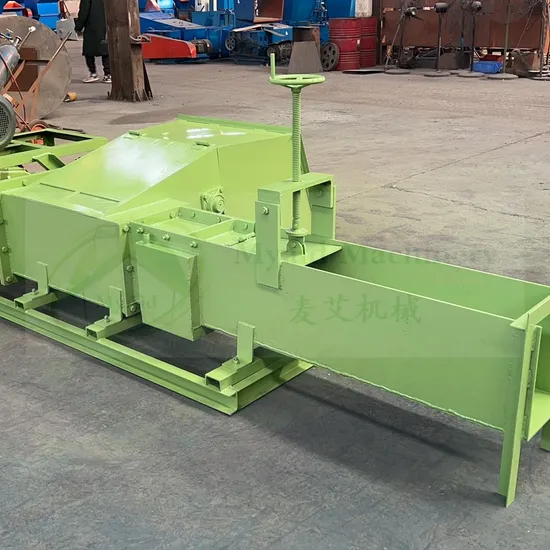

The EPS compressor is designed to reduce the size of expanded polystyrene foams for easier storage and transportation. The compact ratio is up to 40:1; and hours long operation without overheating.
Installed a pre-crusher in the hopper which automatically breaks up larger pieces. Up to 50:1 compaction. 98% reduction in volume. Achieves a density in the range of 250 - 350 kg/m³, output is 70~150kg/h. Variable block sizes depending on machine. Saving handling & transport cost and store space.
Machine Parameter

Model No.	300E	300H	300V	400H	400V
Brick Size	300*300mm	300*300mm	300*300mm	400*400mm	400*400mm
Capacity	150kg/h	150kg/h	175kg/h	250kg/h	300kg/h
Diesel Engine	Single cylinder	Single cylinder	Single cylinder	Four cylinders	Four cylinders
	18kw	22kw	22kw	48kw	48kw
	L25	L32	L32	4102	4102
	Turn on automatically by battery power or manually by rocker
Hopper Size	830*760mm	830*760mm	1100*800mm	1200*1000mm	1200*1000mm
Machine Size	3000*1500*1200	3000*1700*1200	3000*1700*1400	4600*1600*1600	4600*2800*1400
Machine Weight	1000	1050	1050	1600	1600
Motor Power - optional	11kw	11kw	15kw	15kw	22kw
