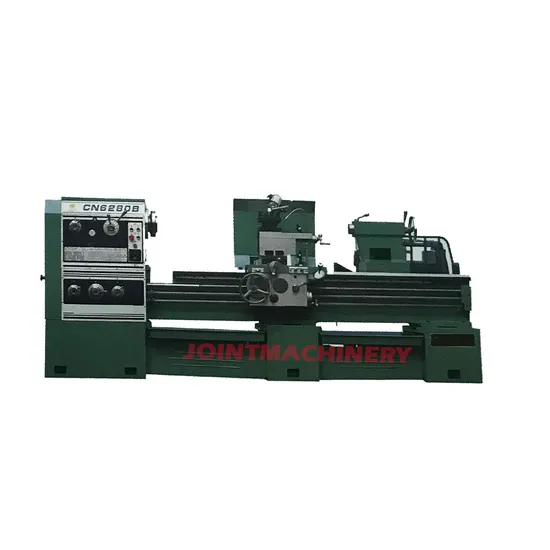

Precision Horizontal Lathe Machine for Metal Process Horizontal Manual Lathe Torno

Product Description

√ Unleash unprecedented durability and precision in body machining with our machine guide way, achieving an astounding hardness exceeding HRC52°. This feat is realized through the utilization of a state-of-the-art high-precision CNC guide way grinding machine, ensuring both exceptional longevity and unrivaled accuracy.
√ The lathe head box, feed box, and sliding box are intricately engineered with CNC machine center machining. This meticulous process ensures the pinnacle of machining precision for each box, guaranteeing every component meets the epitome of excellence.
√ Experience whisper-quiet operation with our transmission gear, meticulously crafted through CNC gear grinding machining. Undergoing stringent noise testing, it promises a serene and smooth performance.
1. Quenched Guideway
Experience unmatched hardness and wear resistance with our quenched guide rail, delivering extraordinary durability and performance.
2. Tool Post
Equip your lathe with a standard 4-position tool post, or opt for an optional quick-change tool post for enhanced flexibility.
3. Three-Jaw Chuck
Standard issue includes a 3-jaw manual chuck, with the option to expand your capabilities using a versatile 4-jaw chuck.
4. Tailstock
Crafted with a standard manual tailstock, this feature is ideal for the efficient handling of shaft bar workpieces.
5. Working Light
Includes a working light, enhancing operator convenience and simplifying operation.
Precision Horizontal Lathe Machine for Metal Process Horizontal Manual Lathe Torno

Model			CN6140
Max swing over bed		mm	420
Center height		mm	210
Max work piece length		mm	1000, 1500, 2000, 3000
Bed rail width		mm	390
Max turning diameter of work piece on tool holder		mm	220
Max turning diameter of workpiece in saddle groove		mm	630
Valid length of gap		mm	240
Through hole diameter		mm	82
Bore hole		mm	90/1:2
Spindle rotation speed		rpm	9-1600
Max transverse travel of tool rest		mm	320
Max travel of small tool rest		mm	145
Distance between spindle center line and tool support surface		mm	about 28
Tool cross sectional dimension (H*W)		mm	25*25
Longitudinal feed		mm/r	0.028-6.43
Transverse feed		mm/r	0.028-6.43
Taper of center sleeve inner hole		mm	MT5
Max movement of center sleeve		mm	150
Max transverse movement		mm	±15
Thread	Inch system		72-1/8t/in
	Metric system		0.5-224
	Module		0.5-112
	Diameter pitch		56-1/4DP
Motor specification			7.5kw 1500rpm
Belt specification			B-2260
Dimension (L*W*H)	1000mm	mm	2625*1043*1275
	1500mm	mm	3125*1043*1275
	2000mm	mm	3625*1043*1275
	3000mm	mm	4800*1043*1275
	3500mm	mm

Shenzhen Joint Machinery Co., Ltd. stands as a respected leader in manufacturing and exporting CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, as well as milling and grinding machines. Our relentless commitment ensures we deliver machines of exceptional quality and service beyond compare to our global clients. We adhere to rigorous quality control to consistently uphold the pinnacle of industry standards. By harnessing advanced technologies from Taiwan and Germany, combined with cutting-edge production equipment and processes, we guarantee product excellence and reliability. Our machines are renowned for their remarkable precision, stability, and reliability, expertly meeting a range of high-demand machining specifications. Enjoying a global export presence, our products captivate and earn acclaim from customers worldwide. Our market outreach spans Asia, Europe, South America, North America, and further. We nurture enduring partnerships with clients across the globe, collaboratively generating immense business value.
