CE/SGS/ISO/TUV/Eac 3t 5t 10t 15t Remote Control Factory Workshop Eot Single Girder Beam Overhead Crane Price with Steel Wire Rope Hoist

Product Description

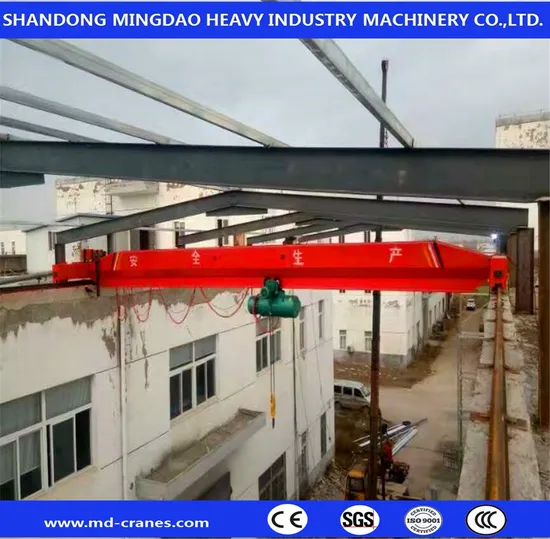

PRODUCT DISPLAY
---------------
8T Single Girder Top Running Bridge Crane With Convenient Maintenance
3D Sketch
PRODUCT FEATURES
Brief Introduction:
LD model single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole crane. Single girder overhead crane is more typical when lifting capacity less than 20T.
Used together with CD1 model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 32ton. The span is 7.5m~ 22.5m. Working duty is A3~A5, working temperature is -25-40ºC.
This product is widely used in steel mills, warehouse,hydropower station,production workshop, production line, materials stocks,equipment assembly etc to lift goods.
We have comprehensive standard equipment and professional design engineers to offer best solutions for individual requirements.
This product has two operational methods, ground(pendent controller /remote controller) or operational cabin room .
Technical Parameters:

Main Parameters List
Crane Traveling Mechanism	Traveling Speed(m/min)		20	30	45	60
	Ratio		58.95	39.42	26.51	19.44
	Motor	Type	Cone Squirrel-cage		Cone Squirrel-cage
		Power(kw)	0.8*2, 1.5*2, 2.2*2		1.5*2, 2.1*2
		Rotary Speed(r/min)	1380		1350
Hoist Lifting Mechanism and Traveling Mechanism	Electric Hoist Model		MD1		CD1
	Lifting Speed(m/min)		8/0.8, 7/0.7, 3.5/0.35		8, 7, 3.5
	Span(m)		7.5-22.5 or assigned
	Lifting Capacity(t)		0.5-32
	Lifting Height(m)		6, 9, 12, 18, 24, 30
	Traveling Speed(m/min)		20, 30
	Motor		Cone Squirrel-cage
Work Duty			Intermediate Jc=25%
Power Supply			380V 50HZ 3P
Wheel Diameter			Φ270, Φ400
Trail Width			37-70

PRODUCT DETAILS
Advantages of a single girder overhead crane design: Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the bridge and runway beams Most economical option for light to medium-duty cranes Lower loads on the building structure or foundations due to a reduced deadweight. In many cases, it can be supported by existing roof structure without the use of additional support columns. Better hook approach for both trolley travel and bridge travel Easier to install, service, and maintain Ideal for workshops, warehouses, material yards, and manufacturing and production facilities Lighter load on runway rails or beams means less wear on the beams and end truck wheels over time Great for facilities with low headroom Safety Devices for overhead crane:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as following:
1.Overload Limit Switch
2.Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6.Current Overload Protection System
7.Rail Anchoring
8.Lifting Height Limit Device
Our service:
Pre-Sales Service
1.Inquiry and consulting support* View our Factory
2.Design drawing of CAD
During production period
1.Strict quality control system, supervision the work to ensure the best crane for you.
2. Strict production line, make sure manufacture the goods on time.
3. Send real time production procedure video and pictures for customers
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
After-Sales Service
1.Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.
2. Installation service
3. Online support* Radio support
4. Telephone support. Engineering service
5. Will provide all technical documents by U flash desk when delivery and soft copy (Installation manual, instruction, electrical drawing, 3D drawing etc)
Production process:
Loading to customers by container:
Shipping way of MD Cranes:
ABOUT US
-------------
Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China , it is near the China famous Mountain Taish, and also near Kongzi Temple.We are mainly engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail Hoist, Electric Winches, scrapers and CD1 MD1 HC Electric Hoist, Hand Chain Hoist etc... In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China.Also, with the help of China trading companies we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries .We got 99% good feedback from the overseas customers.Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages.Integrity, quality, customer satisfaction is the pursuit of Mingdao heavy workers!

ADVANTAGES
1. The installation and operation of the electric single-beam crane is very simple, so that users can learn to use mechanical equipment as soon as possible.
2. Electric single-beam cranes also have the advantages of compact structure and light weight, which can save a lot of space and land, and enable users to obtain high satisfaction.
3. The electric single-beam car also has the advantage of being easy to maintain, which can reduce a lot of unnecessary problems for users and make people like it more and more.
ENGINEERING COOPERATION

CUSTOMER VISITING FACTORY

CUSTOMER FEEDBACK
CERTIFICATE
FAQ
------------------
Q1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.Please give us the information as clear as you can, so we can give our best design to suit for your demands.
Q2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.
Q3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
Q4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
Q5:In order to offer the most suitable design solution for you, It will be great helpful if you can offer us the following information to us:
1.Lifting capacity.
2.Span length.(rail center to rail center)
3.Lifting height.(hook center to ground)
4.Have you installed the rails?Do you need us to supply the rails?How long is it?
5.Power supply:Voltage.
6.Working condition:What kind of material to lift?Temperature?
7.It would be much better if it is possible for you to offer the drawing photo of your workshop.
