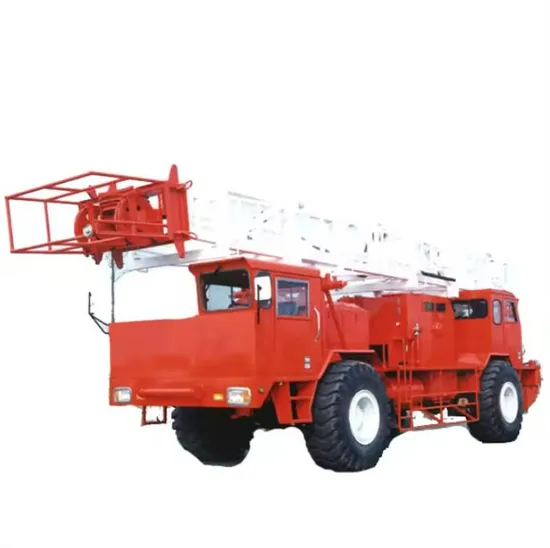

API Standard Xj350 3200m Mobilec Oil Well Drilling Rig Machine

Product Description

Product Description

Main parameters of Truck-mounted drilling rigs
Model	ZJ10/1125CZ	ZJ15/1350CZ	ZJ20/1470CZ	ZJ30/1700CZ	ZJ40/2250CZ
Drilling depth(4 1/2"drill pipe)m(ft)	1000(3280)	1500(4920)	2000(6560)	3000(9840)	4000(13120)
Workover depth(3 1/2"drill pipe) m(ft)	3500(11483)	4000(13123)	5500(18045)	6500(21325)	7500(24606)
Max. hook load kN(lb)	1125(253000)	1350(303696)	1470(330700)	1700(381260)	2250(505800)
Drill line diameter mm(in.)/lines	φ26(1")/8	φ26(1")/8	φ29(1-1/8")/8	φ29(1-1/8")/8	φ32(1-1/4")/10
Max. hook speed m/s(ft/s)	1.23(4)	1.33(4.36)	1.31(4.3)	1.36(4.46)	1.36(4.46)
Overall dimensions(m)	17.5×3.1×4.18 (57.4×10.17×13.7)	19.6×2.9×4.3 (64.3×9.5×13.8)	20.13×3.2×4.4 (66×10.5×14.44)	21.25×3.3×4.47 (69.7×10.8×14.67)	22.45×3.3×4.48 (73.65×10.8×14.7)
Weight kg(lb)	42000(92590)	51000(112430)	56000(123456)	76000(167548)	82000(180776)
Power system	CAT3406C	CAT3408	CAT3412	CAT3406C	CAT C-16
Engine power kW(hp)(2100r/min)	343(460)	354(480)	485(650)	343×2(460×2)	448×2(600×2)
Model, transmission	ALLISON-S5600DB	ALLISON-S5600HR	ALLISON-S6610HR	ALLISON-S5600×2	ALLISON-S6610×2
Emergency power(eletrical motor)	Optional	Optional	Optional	- -	- -
Chassis driving type	10×8(8×8)	10×8	12×8	14×8	14×10
Min. turning dia. m(ft)	34(111.55)	34(111.55)	36(118.11)	42(137.8)	44(144)
Min. ground clearanec in. mm(in.)	340(13.39)	340(13.39)	340(13.39)	340(13.39)	340(13.39)
Drawworks type	Double drum(Single drum)	Double drum(single drum)	Double drum(single drum)	Double drum(Single drum)	Double drum(single drum)
Drawworks power hp	450	550	650	750	1000
Dia. Length,main drum in.(in.)	φ429×965(φ16.9×38)	φ429×965(φ16.9×38)	φ480×914.5(φ18.9×36)	φ480×914.5(φ18.9×36)	φ635×1254(φ25×49.4)
Main brake type, main drum	Band type(or hydraulic disc type) Force spray water cooling-forced	Band type(or hydraulic disc type)	Band type(or hydraulic disc type)	Band type(or hydraulic disc type)	hydraulic disc
Auxiliary brake, main drum	22"SR hydro brake	22"SR hydro brake(force spray water cooling-forced)	22"SR hydro brake(force spray water cooling-forced)	WCB324 disc brake	WCB224 disc New
Speeds of drawworks	5 forward 1 reverse	5 forward 1 reverse	five forward 1 reverse	five forward one reverse	five forward one reverse
Mast type	JJ119/33.1-W	JJ135/34-W	JJ155/35-W	JJ180/36-W / JJ180/38-W	JJ225/39-W
Mast height m(ft)	31.3(102.69)	34(111.55)	35(114.83)	36(118.11) / 38(124.6)	39(127.92)
Height,Monkey boardm(ft)	19.7/20.7(55.77/64.6)	20/21.5(65.62/70.54)	20/21.5(65.62/70.54)	20.4(66.9)	20.4(66.9)
Max. wind load km/h(kn)	110(60)	110(60)	110(59.35)	110(60)	110(60)
Control/lighting/power system	24V/220V/380V(China)	24V/220V/380V(China)	24V/220V/380V(China)	24V/220V/380V(China)	24V/220V/380V(China)
Reted pressure, hydraulic/air system Mpa(psi)	14/0.833-0.93(2002/119.12-133)	14/0.833-0.93(2002/119.12-133)	14/0.833-0.93(2002/119.12-133)	14/0.833-0.93(2002/119.12-133)	14/0.833-0.93(2002/119.12-133)
Substructure	ZT1470/3.7-S telescoping substructure	ZT1470/4.5-S telescoping substructure	ZT1690/4.5-Z foldable substructure	ZT2250/5-Z foldable substructure	ZT3000/6.7-Z foldable substructure
Rotary table	ZP175(ZP105)	ZP175	ZP175	ZP205	ZP275
Travelling block	YG150	YG150	YG150	YG170	YG225
Swivel	SL120	SL135(SL160)	SL160	SL225	SL225

Packaging & Shipping
Hot Sale Products
Company Profile Shandong xilong Machinery Equipment Company Limited is a supplier of drilling equipment for oil and gas industries. We are committed to providing first class products and services to our customers all over the world. Xilong is located in Dongying City, which is famous for Shengli Oilfield and the largest manufacturing hub of petroleum equipment inChina. We supply various kinds of oilfield equipment, including oil drilling equipment and accessories, drilling tools, petroleum drill pipe and pipe, instruments and meters and accessories, O C T G, wellhead and down hole tools and spare parts, electrical and mechanical equipment.
Certifications
FAQ Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, and our engineers will provide solutions and quotations in time.
Q2. How about your delivery time?
A2: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q3. What is the warranted period of the machine?
A3: We can supply 1 year warranty for our machines. We can provide internet or calling service at any time. We can also send engineers to your place if the production has big quality problems.
Q4. after-sales service
A4: 1. Installation: Free installation and commissioning, travel expense is on foreign customer. (Including round ticket and accommodation cost) 2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machine
Q5. What services can we provide?
A5.Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF; Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, Credit Card, PayPal, Western Union, Cash,Escrow; Language Spoken: English, Chinese, Spanish, Russian
