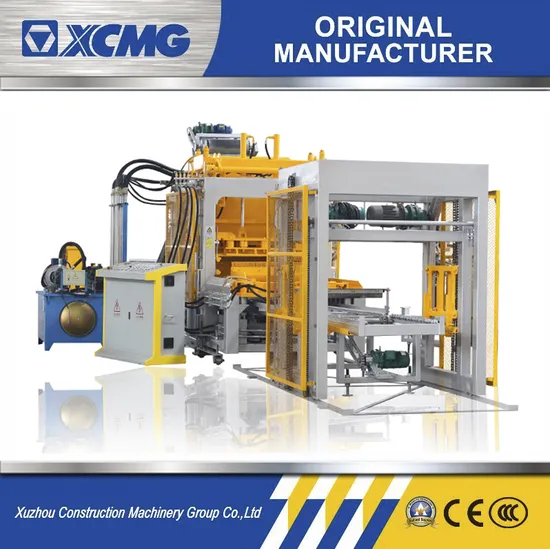

XCMG Official MM10-15 Automatic Cement Brick Making Machine
Product Description
MM10-15 block making machine is one of the most popular machine for hollow block, solid block,interlocking paver, curb stone production in the market.
The pallet size for MM10-15 is 1100x950mm or 1100x900mm according to the size of concrete products to be made by customer.
This powerful concrete brick, block and paver making machine is capable of producing 8inch hollow block at 10pcs per drop,around 14000pcs per shift at 8 hours.
For making rectangular paver at 200x100x60mm,the output is 36pcs per drop,at 1000 square meter per shift.
MM10-15 is a well constructed block making machine features Schneider electrical parts, Japanese Yuken hydraulic valves,SIEMENS motor for hydraulic station to ensure the stable performance of plant, and the SIEMENS PLC in control cabinet,with Two SIEMENS vibration motor,ensuring the best compaction for producing the high quality brick,blocks and paver.
Vibration System
Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static.The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products.
Feeding System
Motor use SIEMENS motors or other Famous brand Chinese motor, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty steel, the location of bottom plate can be adjusted. The raking teeth is a complete piece bolted to the feeding cart shaft,easy to be changed during maintenance.
Hydraulic Station
Hydraulic pumps and hydraulic valves adopt international brands Japanese YUKEN Brand,with double proportional and single proportional valve as well as relief valve. The flow and pressure for the hydraulic can be adjusted according to different concrete block production.Tube uses "Flange Connection", convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial. Dynamic proportional valve and constant power pump, speed regulation, voltage regulation, energy saving.
Control system
Germany Siemens PLC control system, Siemens touchscreen, SCHNEIDER relay and Contactor,easy operation,low failure ratio, machine running stability and high reliability.Use the most-advanced industrial internet technology, realize remote trouble-shooting & maintenance. REMOTE control device being installed in control system, allow to do remote control for customer, convenient for machine maintenance and troubleshooting.
Product Parameters

Technical Specification for MM10-15 Automatic Block Making Machine
Pallet Size:	1100x950mm
Vibration:	Table Vibration
Rating Pressure:	21Mpa
Cycle time:	15-22s
Vibration Frequency:	2800~4500rmp
Motors Power:	52KW For Main forming machine parts only with material conveyor belt
Vibration motor:	Electrical Vibration motor
Machine Dimension:	9800x2300x2600mm
Gross Weight:	About 11T For Main forming machine
Raw Materials:	Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products:	Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	Widely used in buildings, road pavings, squares, gardens, landscaping, city constructions
Installation power:	110KW for complete plant
Actual power consumption:	50~60KW/hour

Product Picture
Packaging and Transportation
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
